12 channel fiber optic receiver module gore, optical

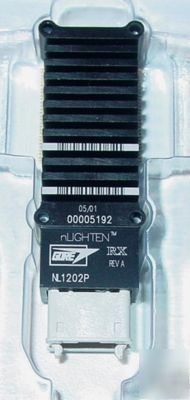

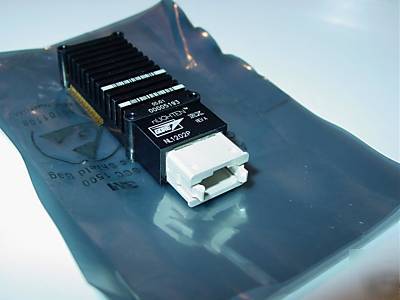

12 Channel Fiber Optic Receiver, NEW
GORE/ OCP, nLIGHTEN, nL1202P, 1.25 Gbps)
W. L. Gore & Associates, Inc. manufactures high-speed components for
use in telecom and data communications equipment. The nL1202 parallel
optic module is a 12-channel receiver, which converts twelve optical
inputs to twelve differential electrical outputs at 1.25 Gbps per channel.
When used with a nL1201 transmitter, this device transfers an aggregate
bandwidth of 15 Gbps up to 300 meters using standard FDDI grade
62.5 m multimode ribbon fiber.
15 Gbps aggregate link bandwidth
Low Voltage Differential Swing (LVDS) outputs
Designed for use with standard FDDI grade 62.5/125 m graded index fiber
Link sensitivity of 16 dBm at 10 12 BER
Link distance up to 300 meters when used with nL1201 transmitter
Opto-electrically compatible per multi-source agreement
Multi-source footprint design
http://www.icwic.cn/icwic/data/pdf/cd/cd068/Transceiver,%20Tx,%20Rx,%20FO/a/453166.pdf
I can email you the Datasheet for review
