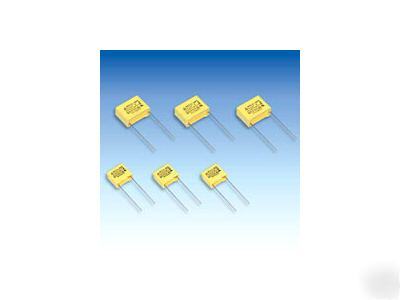

X2 film safety capacitors 0.1UF @ 275 volts ac qty=12
On sale are package of twelve (12) new stock 0.1 uF / mfd (100000pF) at 275 Volts Metalized Polypropylene SAFETY / Interference Suppression Capacitors. X2 Safety/Interference Suppression Film Capacitors are specifically made for high voltage AC (alternating current) applications. X2 safety capacitors can safely be used as across the line / line filter capacitors and antenna coupling capacitors in vintage tube electronics. These safety certified capacitors can also improve the performance of your radios/hi-fi's/Amps/TV's due to their NOISE INTERFERENVE SUPPRESSION characteristics. Back When your vintage tube electronics were manufactured there was a lot less noise interference and X2 safety capacitors had not been invented. You can improve the safety, reliability and performance your tube electronics by replacing your old/original paper/wax across-the -line / line filter capacitors with new safety approved capacitors. If yould you would like to learn more about safety capacitors, info is available at ABC's of Safety Capacitors.
* Ideal for "across the line" / "line filter" / "interference suppression" applications.
* Safety Approved by UL (USA) UL1414 and UL1283; CSA (Canada) C22.2NO.1; SEMCO, SEV, FIMCO, NEMCO, DEMCO, VDE, CE (Europe) (EN132400 / IEC384-14); CQC (China) safety_symbols.
* Construction : MPX-2 metalized polypropylene film and metalized polyester film dielectric (non-inductive type).
* Extra long 30mm (1 1/4") tinned copper radial leads for easy "under chassis" installation. Flame retardant encased.
* Insulation Resistance: 9000 megaohms.
* Operating Temperature Range: -40C to +100 C.
* Dissipation factor : 0.1% max. at 1 KHz and 25C
* Rated Voltages: 250 Volts AC for UL, CSA (Canada and USA); 275VAC Europe/China and Worldwide
* Test Voltage: 1185Vdc for 1 full minute or 2000Vdc 1 sec. !
* Capacitance : Available at hard to find sizes of 0.005uF, 0.01uF, 0.015uF, 0.02uF, .05uF, 0.1uF and 0.25uF (we carry X1Y2 Safety Capacitors where lower uF values are required)
* Applications : Ideal for across-the-line, line filter, antenna coupling, spark killer circuits, switching power supply and EMI (electromagnetic interference) filter and interference suppression.
* Capacitor Tolerance : +/- 10%.
