Radio condenser co. n/a variable capacitor, dual 2-g
Radio Condenser Co. N/A Variable capacitor, dual 2-g

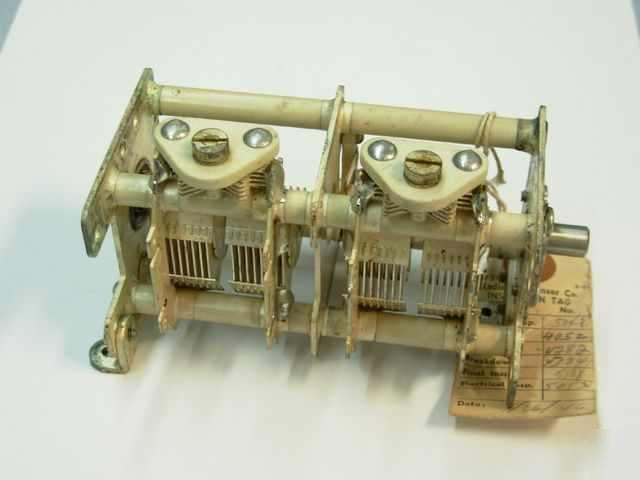

Variable capacitor, dual 2-gang, with balance trimmers.
* Same as our item 30346 but with no corrosion
* Each unit has four sections of variable capacitors with 8 - 90 pF each.
* Each section has half of a trimmer across it, subtracting 0 to 5 pF
* Two sections have a connection to their isolated rotor (8-90 pF each)
* The other two sections are in series via the floating rotor (10-49 pF total)
* All "business parts" are silver plated, guaranteeing a very high Q
* Ceramic shaft and insulators, contributing to the high Q, supported by ball bearings at the ends
This item is used and has been tested to be in good working condition. Very good condition.
