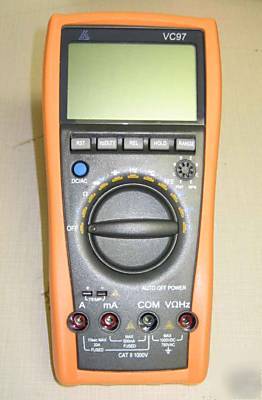

New ldb digital multimeter VC97
The meter is a high performance, high accuracy, 3 3/4-digit, 32mm digit high by LCD displaying meter. The function includes DCV, ACV, DCA, ACA, resistance ,capacitance, frequency, temperature duty cycle measurement, triode, diode and continuity test. Also with the function of unit signal displaying ,relative value measuring ,auto range/ manual range switch ,auto power off and warning function etc.
Display: 3 3/4digit LCD with a max readings of 3999, Automatic negative polarity indication.,
Measuring method: Dual-slop integrating A/D converter system.
Sampling rate: Approx. 3times/second.
Over range indication: OL display.
Low battery: The is display.
Operating environment : Temperature (0 to 40 ), humidity<80%RH.
Storage environment: Temperature (-10 to 50 ), humidity<80%RH.
Power: 2pcs 1.5V AAA 7# battery.
Dimension: 185(L)X93(W)X35(H)mm.
Weight: Approx. 290g(including battery).
Accessories: manual, gift box ,holster ,TP01 temperature probe, test leads and 2pcs 1.5V battery.
Accuracy: (a% reading + digits) at 23 5 ,<75%RH.
Input impedance: 400mv range>40M ,other range is 10M .
Overload protection: 1000V DC or 700V AC peak value
Frequency response: 750V range: 40~100Hz, other range: 40~400Hz
Displaying: sinewave RMS(average value response)
Max. measuring volt drop: 400mV under mA range, 200mV under A range.
Max. input current: 20A(less than 15sec.)
Overload protection: 0.5A/250V fuse, 13A/250V fuse.
Frequency response: 40~100Hz under 10A range, 40 400Hz at other range.
Overload protection: 250V DC/AC peak value
WARNING: do not input any voltage at this range! When measuring, the capacitor should be completely released and the power must be turned off.
If the resistance of the two tested points is less than
Overload protection: 250V DC/AC peak valuee
WARNING: do not input any voltage at this range.
