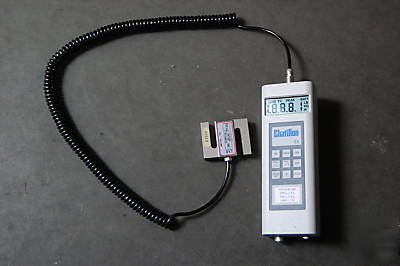

Chatillon dfgs-r-200 force gauge 200 lbs cell
Chatillon DFGS-R-200 Force Gauge Ametek NC000136-3 load cell
Accuracy: 0.15% of full scale 1 LSC (least significant count)
Tare Capacity: 10% of full scale in pound or ounce mode
Analog Output: 0 to 2.0 VDC full scale, accurate to 0.018 Volt
Temperature: 40 to 110 F (5 C to 45 C), Stability: 0.03% per F
The DFGS-R dedicated remote load cell gauge offers the same operation, and output/interface features of the DFGS Integral Load Cell Gauge with the added versatility of a remote cell. These gauges are suitable for applications where space or environmental factors will not permit the use of a regular gauge. Each dedicated cell and corresponding gauge electronics are factory matched and calibrated to provide the same accuracy as the integral cell models: 0.15% of full scale, least significant count.
