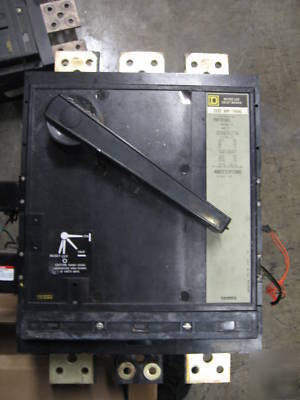

Square d circuit breaker 3P 2000A 600V PHF2036G
SQUARE D CIRCUIT BREAKER 3P 2000A 600V PHF2036G . BREAKER HAS 2000 AMP RATING COLUMNS (1200 AND 1600 ALSO AVAILABLE). HAS GROUND FAULT SHUNT TRIP INSTALLED. BREAKER IS RECON/TESTED WITH A 1 YEAR REPLACEMENT WARRANTY.
THERMAL MAGNETIC, P FRAME; 240 VAC AT 50/60 HZ, 480 VAC STAR/277 VAC AT 50/60 HZ, 480 VAC AT 50/60 HZ, 600 VAC STAR/347 VAC AT 50/60 HZ, 600 VAC AT 50/60 HZ (UL/CSA/NOM); 240/415 VAC AT 50/60 HZ (IEC); 2000 AMPERE; 3 POLE; INTERRUPTING RATING 12 KILOAMPERE AT 240 VAC, 10 KILOAMPERE AT 480 VAC STAR/277 VAC OR 480 VAC, 65 KILOAMPERE AT 600 VAC STAR/347 VAC OR 600 VAC (UL/CSA/NOM); 70 KILOAMPERE AT 240/415 VAC (IEC); TERMINAL PAD; SIZE 13.7 INCH W X 10.47 INCH D X 20.06 INCH H; APPROVAL UL, CSA; PHF MODEL
