> New 2 hp port vertical mill #25287

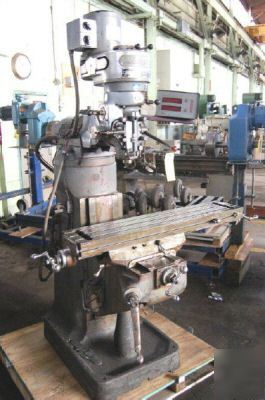

New 2 hp port vertical mill #25287
New 1980, Serial No 801026, Model 2S
Table Dimensions (Overall), W x L...... 9" x 42"
Table Longitudinal Travel (X-Axis)..... 24"
Quill Diameter......................... 3.375"
Spindle Nose to Column Face, Maximum... 18.75"
Spindle Nose to Column Face, Minimum... 6.75"
Spindle Nose to Table, Maximum......... 18.5"
Spindle Nose to Table, Minimum......... 0
Spindle Speeds, Range.................. 80 to 5440 RPM
Spindle Motor, Horsepower/RPM.......... 1.5 HP/1730 RPM
Floor Space Required, W x D............ 4'0" x 5'8"
Weight, Approximately.................. 2200 LBS
