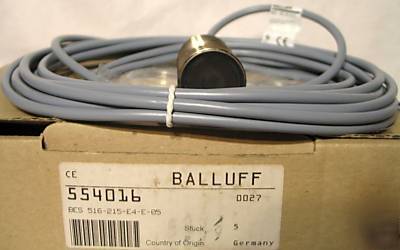

New balluff BES516215E4E05 ind. prox 20-250V ac/dc 30MM
* Mounting in steel shielded
* Rated operating distance Sn 10mm
* Assured operating distance Sa 0...8.1mm
* Ambient temperature range -25...+70 C
* Time delay before availability <= 100ms
* Measurements BxHxT or DxT M30x1.5 x 61.5mm
* Housing material nickel plated brass
* Material of sensing face PA 12
* Degree of protection IP67IP
* Schock: Halfsinus, 30 gn, 11ms
* Vibration: 55 Hz, 1mm Amplitude, 3 x 30 Minutes
* switching function normally-open
* Rated opertional voltage 110 ACV
* Rated opertional current 250mA
* Supply voltage 20...250 AC/DCV
* max. switching frequency 150Hz
* Minimum opertional current 5.0mA
* No-load supply current -/-mA
* Off-state current <= 1700 A
* Maximum opertional current 2.0/1.0mA
* Voltage drop <= 11.0/<= 7.5V
* Short circuit protection yes
* Protected against polarity reversal yes
