Enerac 3000 portable emissions gas analyzer
Below is some general information that I got from http:// /pdf/enerac3000.pdf
The ENERACTM 3000 portable emissions analyzer
offers you the capabilities and systems support
required to meet your periodic monitoring needs
with low-cost, defensible data that can be used
to reduce operational and compliance risks.
The 3000 analyzer meets the following EPA
CTM-022 Test Method for NO, NO2, NOX
Method 7E.5.1.1 Sample Conditioning
ENERACTM 3000 analyzers have been successfully used for:
Compliance Testing Quarterly Testing
Title V Periodic Monitoring Energy Efficiency Programs
CAM/Plan Development Equipment Maintenance
Emissions Trading Credible Defense for ACE
ENERAC s automatic/documented quality control features
will reduce compliance risks, assure data accuracy, simplify
operator training, increase productivity and reduce costs.
Meets requirements of all EPA and state electrochemical
sensor technology protocols: i.e. CTM-030.
(CO, NO, NO2, NOX, SO2) brake hp-hr brake hp-hr
6. EMISSIONS 2 0.000-99.99 lbs/MMBTU 0.01 lbs/MMBTU 5% of reading
5. EMISSIONS 1 0-2500 mg/m3 2 mg/m3 5% of reading
3. EXCESS AIR 0-1000% 1% 10% of reading
4. OXIDES OF NITROGEN (NOX) 0-800 PPM 1PPM 2% of reading*
1. COMBUSTION EFFICIENCY 0-100% 0.1% (4 loss): 1% (above
Heat loss method. Unique four loss factors H2O condensation)
computation (dry gas, water vapor, gaseous 2% (below H2O
combustIbles, combustIbles in ash condensation)
emissions analyzer provides you
package of capabilities in the
Advanced SEMTM sensor technology provides the
assured data accuracy required for a broad range
of monitoring needs. Built-in Quality Assurance
features document proper sensor and equipment
performance before each test, which truly simplifies
Advanced SEM sensors (CTM-022 + CTM-030)
Dual-range capability for CO NO SO2
Battery-operated Sample Conditioning (Method 7E)
These features are backed by a comprehensive
framework of supporting services, including:
Comprehensive operator training
Regulatory support and interface
Remote two-way communication and support
Integrated data system with standard units
Advanced Windows based data management
1. Temperature Control NO Sensor: < 30 C to
eliminate zero drift and the effects of sensor
2. Calibration Certification Protocol: Automatic
printout of both auto zero and span calibration
test results, including sensor diagnostics and filter
3. Operational Flexibility: Unique, single, dual-range

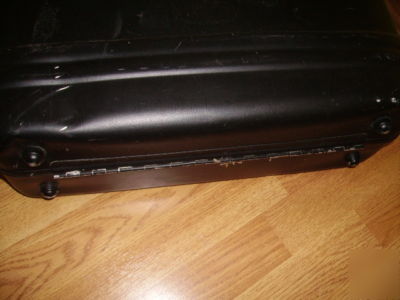

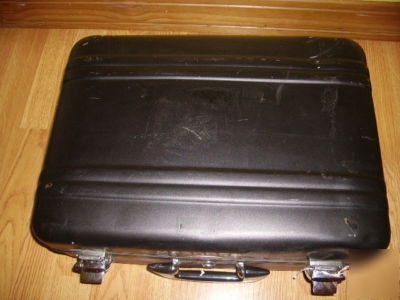

1. CASE: 18" x 13" x 6" Aluminum carrying case with

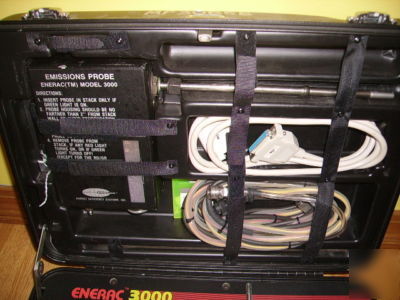

2. PROBE: 24"L. x 3/8"O.D. inconel probe with
Hastelloy X sintered filter and 1/2" deflector
mounted on permeation drier housing. Probe
housing connects to instrument via a 10 ft. PTFE
Teflon hose. Max. continuous temperature:
1800 deg. F. Max. sample dew point (past dryer)
50 deg. F. @ 500 cc/min. (Natural gas fuel @ 0%
1. BATTERY: 6V rechargeable, sealed, lead-acid cell.
Three hour continuous battery operation. Quick
2. AC:120V/60 Hz and 220V/50Hz standard.

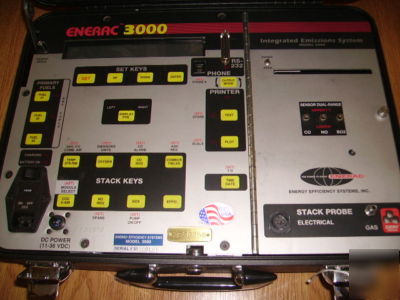

0.5" High by 24 Character single line LCD with
backlight illumination and adjustable viewing
SEIKO 4", 40 char. per line thermal printer with form
feed and line feed buttons and with end of paper
override. Operates in any of four modes:
1. TEXT MODE: 25 line printout of instant values of all
measured parameters and automatic printout of
calibration checks. (Time req: 20 sec.)
2. PLOT MODE: Any one parameter vs. time plotted.
Three ordinate scales: full, half, quarter.
Time scale: Selectable, 1 sec/dot-1 min/dot in 1
3. EXTERNAL PRINT MODE: Prints messages sent via
Internal: Minimum 50 individually selectable buffers
hold one complete set of measurements each in
non-volatile memory. Buffer contents can be sent to
1. RS-232 PORT: RS-232c port (DTE or DCE), 1200
baud default, 300-9600 baud user selectable, half
duplex, 1 start bit, 8 data bits, 1 stop bit, no parity.
2. TELEPHONE PORT: Internal 1200 baud modem
connects to a modular phone line for remote
3. SOFTWARE: ENERCOM for WINDOWS software.
3.5" diskette, includes alarms, programming fuels,
bar graphs, multiple line plots and cumulative plots
of mass emission rates (lbs/hr; tons/yr) .
1. FUELS: 15 fuels (3 in foreground, 12 in background)
are standard. Custom fuels available on request.
2. CO ALARM: Selectable 0-2000 PPM in 10 ppm steps.
3. COMBUSTIBLES IN ASH: Presettable 0-100% in
4. MESSAGES: User friendly diagnostic & help messages.
5. CALIBRATION: Auto gas span plus user selectable
OPERATOR TRAINING & CERTIFICATION:
SEM TM electrochemical portable instrumentation is
an important, cost-effective method to acquire
compliance-level emission data. To ensure proper
implementation, the operator should be trained
as to the instrument's capabilities.
Two-way advanced communication and remote
operation includes remote factory check and
repair, and remote operation and reporting.
All ENERAC 3000 units can be expanded and
upgraded at any time to meet your changing
For more information on how the ENERAC
3000 can help simplify your monitoring
programs, CALL 1-(***)-695-3637.
*When tested according to 40 CFR 60, RAA Test Oxygen correction factor for emissions adjustable 0 - 20 1% steps plus true.
**Other ranges available on request.
1. SEM NITRIC OXIDE (NO)** Temp Cntrl <30 C 0-300, 300-1,000 OR 1PPM 2% of reading*
Dual Range Electrochemical cell. Life 2 years 1,000-3,500
2. SEM NITROGEN DIOXIDE (NO2) 0-500 PPM** 1PPM 2% of reading*
Fixed Electrochemical cell. Life 2 years
3. SEM CARBON MONOXIDE (CO)** 0-500/2,000 PPM OR 1PPM 2% of reading*
Dual Range Electrochemical cell. Life 2 years 0-2,000/20,000 PPM
4. SEM SULFUR DIOXIDE (SO2) 0-2,000 PPM OR 1PPM 2% of reading*
Dual Range Electrochemical cell. Life 2 years 2000/6,000 PPM
5. OXYGEN 0-25% 0.1% 0.2% of reading
Electrochemical cell. Life 2 years
6. AMBIENT TEMPERATURE 0-150 F 1 F or C 3 F
7. STACK TEMPERATURE 0-2,000 F 1 F 5 F
Type K thermocouple. Degrees F or C (1,100 C) (1 C)
8. COMBUSTIBLES 0-6% 0.01% 10% of reading
Catalytic sensor. Life indefinite in CH4 gas
