Perkin-elmer series 200 isocratic binary micro pump

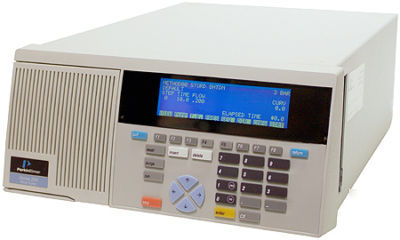

Perkin-Elmer N2910500 Series 200 Isocratic Binary Micro Pump
The Perkin-Elmer Series 200 Micro Pumps provide precise, high-pressure gradients and pulseless flow for microbore, narrowbore, LC/MS and analytical requirements.
Specifications Flow-Rate Range 1 L/min - 3 mL/min
Flow-Rate Increments 1 L/min from 0 to 0.999 mL/min;0.01 to 3 mL/min
Flow Precision 0.3% RSD (typical 0.1%) at 300 L/min water @ 1000 psi
Flow Accuracy 1% of setting at 300 L/min and 1000 psi with water
Retention-Time Reproducibility <0.3% RSD (typically <0.1%)
Pressure Range 0 to 6200 psi for the entire flow-rate range
Compositional Range 0 to 100%, settable to 1%
Compositional Accuracy Typically 0.5% from 10 to 90% up to 2 mL/min
Compositional Precision Typically <0.2% variation
Gradient Forms Linear, convex and concave with high-pressure blender
The Perkin Elmer Liquid Chromatography Series 200 LC Pump User s Manual is not included but available
Series 200 Isocratic Binary Micro Pump
