New waveguide crystal detector hp U422A 40-60 ghz WR19

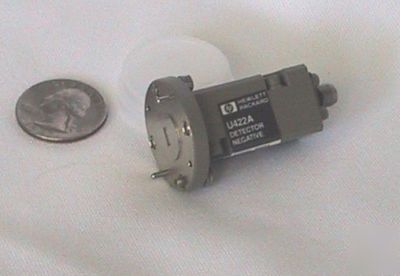

Waveguide Crystal Detecor HP U422A
* HP U422A Waveguide Crystal Detector
* Frequency Range: 40-60 GHz
* Frequency Response: +/- 1.5 dB
* SWR (into 50 W nominal): <2.0
* Low Level Sensitivity (mv/uW): >0.20
* Maximum Operating Input (avg): 100 mW
* Typical Short Term (less than 1 minute): 0.5 Watt
* RF Bypass Capacitance (nominal): 20 pf
* Waveguide Designator: EIA WR-19 (std)
* Flange Designator: UG-383/U (round flange)
* Condition: New - Should meet original performance specs.
