> New 2 brand super vexta pulse generators model #XG71005
New 2 brand super vexta pulse generators model #XG71005

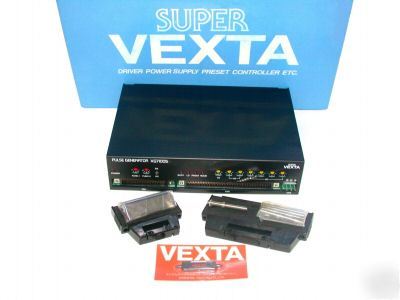

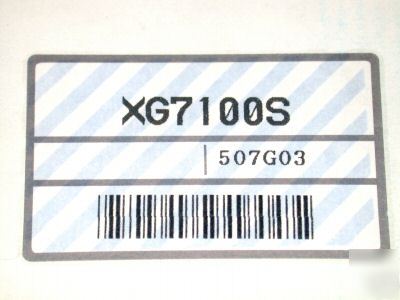

2 BRAND NEW SUPER VEXTA PULSE GENERATORS MODEL #XG71005
Retail cost of more than $900.00/EACH.

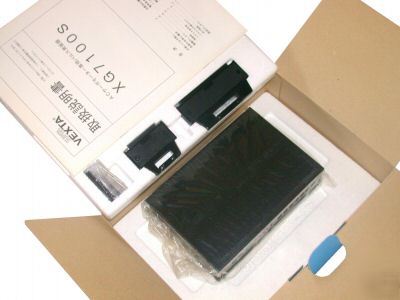

These are brand new generators in the box and they are fully guaranteed.
* Positioning data setting method - IR, VS, VO: set by using the data setters on the front panel PULSE, VR; set by programmable controller, DP100, etc.
* Positioning control - increment (point-to-point) method 1~999,999 pulses per step.
-operating pulse speed: 50Hz~100kHz
-Starting pulse speed: 50Hz~100kHz
-Fixed pulse speed: 1~3000Hz and 2~6000Hz
-Acceleration/Deceleration rate:0.5~1000ms/kHz
* Operation modes - Positioning (indexing), Electronical home return (return), Mechanical home return (home), Continuous operation (scanning), Single pulse operation (jogging).
* Maximum no. of return pulses - + 16.77.215.
* Mechanical home detection function - Executes home return from anywhere within the range of travel using mechanical detection signals(OWLS, OOWLS, HOMELS, SUBLS) and timing signals from the driver.
* Input signals - DC24V Photocoupler input: input resistance of 4.7k
* Output signals - Photocoupler-linked transistor output, DC24V or less, 25mA or less
* Power supply input - DC24V + 3V, 0.35A or less
* External dimentions - 190(W) X 45(H) X 130(D)mm
* Ambient temperature - 0 C ~ 40 C
* Ambient humidity - 20%~85% (no condensation)
