Fujikura fsm-30R fiber arc fusion splicer sm, mm ct-20
The new Fujikura FSM-30R12 brings a new level of productivity and capability to mass fusion splicing. The well proven and market leading mass fusion splicing technology of previous Fujikura mass splicers is now provided in an extremely small and light weight mini-splicer. Improved immunity to ambient conditions and slide-in modular powering units (including battery) provide unprecedented mass fusion splicing capability in remote and outdoor splicing locations. The FSM-30R12 takes mass fusion splicing productivity to a new plateau with 12 fiber splicing time cut to one third that of previous generation mass splicers. The tube heater for heat shrink splice protection sleeves is twice as fast as the previous generation. The FSM-30R12 is the ideal mass fusion splicer for any application.
Best mass fusion splice loss performance in the industry, including splicing non-zero dispersion-shifted (NZ-DS) fibers; Maximum productivity with much faster splicing than previous mass fusion splicer: 30 second splicing time; New wind protector design withstands 30mph cross wind; Unprecedented utility in exposed conditions; Splices up to 12 fibers simultaneously; Ultra small and lightweight design; ideal for remote/outdoor splicing scenarios; Built-in programmable tube heater; Slide in power modules include AC adapter, battery, or camcorder battery adapter; Automatically adjusts fusion arc to compensate for cold temperatures, as well as differences in atmospheric pressure; Simultaneous focus on all 12 fibers and large image magnification on a low glare 5" color LCD monitor provides great fiber visibility; Great mass fusion splicer capacity under battery power.
Applicable fibers SM (Single-mode), MM (Multi-mode), DS (Dispersion shifted) and NZ-DS (Non-Zero Dispersion shifted) fibers; No. of fibers to be spliced: Single, 2, 4, 5, 6, 8, 10 and 12 fibers,irrespective of ribbon or bundle configurations; Actual average splice loss: Typical 0.05dB with SM fiber, Typical 0.03dB with MM fiber, and Typical 0.08dB with DS fiber; Splicing time: Typical 35 seconds; Return loss: > 60 dB; Fiber cleave length: 10 mm each; Fiber observing direction: X and Y (2 axes); Fiber viewing method: 5" TFT color LCD monitor with anti-reflection coating; Number of splice modes: 30 programs; Storage of splice results: The last 150 splices including estimated loss, selected splice mode, arc condition and comment; Applicable protection sleeve length: 40 mm and 60 mm; Number of splicing and heating cycles with BTR-05: Approx. 30 cycles with using power saving function of FSM-30R and HJS-02.

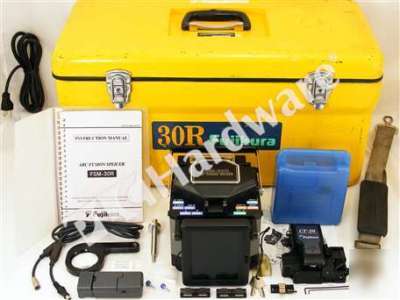

One FSM-30R12 Ribbon Arc Fusion Splicer in Excellent Working and Cosmetic Condition and One CT-20 Cleaver.
