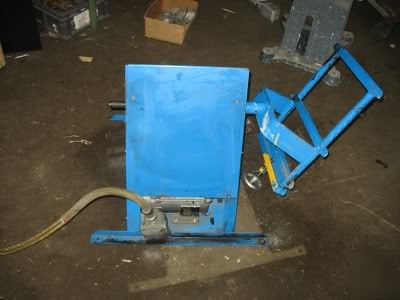

Morse pailpro can tumbler mixer 1 / 5 gal 1-305-s
MORSE PAILPRO CAN TUMBLER MIXER 1 / 5 GAL 1-305-S
Click here for a Specifications listing
Morse Morse PailPRO Logo - Trade MarkCan Tumblers provide aggressive corner-over-corner mixing action. These pail mixers can be used to blend the contents of your closed 1 to 5 gallon pails. Can rotators mix in sealed cans or pails to reduce hazards and save clean-up.
End-Over-End Drum Rotators - Morse 300 Series
Tilt-To-Load Drum Rotators - Morse 310 Series
Can Tumblers - Morse 305 Series
Morse Can Tumblers rotate pails at a constant 23 RPM in
one direction. They do NOT shake or oscillate cans.
* Mix or agitate small batches quickly and economically
* Blend liquid or dry materials
* Tumble pails of parts with media to debur or polish them
2-305 series Double Can Tumblers
1-305 series Single Can Tumblers
* Cans are held at an angle to horizontal rotating shaft resulting in a vigorous "corner-over-corner" mixing action
* Accepts steel or plastic cans and pails:
* Up to 12.5" (31 cm) diameter
* 4.5" to 16.5" (12-42 cm) tall
* Includes typical 5-gallon cans
* Exceptional savings when materials to be agitated are already packed in cans
* Quickly secure pail in holder with hand wheel on threaded rod with locking handle
* Base dimensions: 28" x 28" (See spec sheet for other dimensions)
* 1/4 HP, 60 Hz in choice of voltage, phase, TEFC or explosion proof (50 Hz also available)
* Single phase, 115V TEFC version on model 2-305-1 or 1-305-1 includes 60 minute timer for automatic shut-off. Timer is NOT available on other models.
Description: KIT, 1/4" FRL & VALVE
Description: KIT, 3/8" FRL & VALVE
Install Morse Rotators in accordance with OSHA requirements for enclosure and interlock, etc. For OSHA compliance, see OSHA subpart O.1910.212 "General Requirements for all Machines." Power connections and motor controls must comply with applicable codes.
AC Models are available with 50 Hz motors, however, expect a 20% reduction in RPM of cans. For 50Hz version, add "-50" to end of model number.
Can Tumblers - Pail Mixers - Morse can tumblers provide aggressive corner-over-corner mixing action to mix the contents of sealed 1 to 5 gallon pails.
