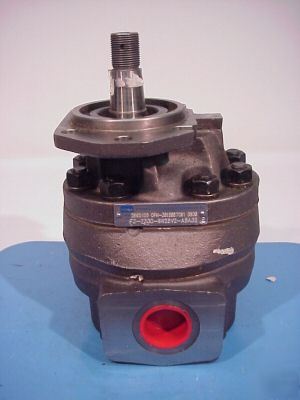

Haldex hydraulics G30 series hydraulic pump
Mount Type - Standard / SAE "B" 2/4 Bolt Combination Mount
Inlet Port - #20 SAE (1 5/8"-12) Straight Thread
Displacement - 80 cc / 4.91 cu in
Outlet Port - #16 SAE (1 5/16"-12) Straight Thread
Rear Cover - Std Single Pump Rear Cover (no options)
Shaft Seal - Single Shaft Seal
Drive Shaft - Tapered Threaded (1.50" Taper Per Foot)
Port Position - Side Inlet / Side Outlet
