Endoscope snake borescope water resistant usb pc camera
Hand Held Endoscope with Flexible Cable
* Easily connects to computer's USB port after installing software CD
* Helps you explore hard to reach places
* Handy pipeline inspection device
* Water resistant camera head & cable (handle is NOT water resistant)
* Adjustable white LED lighting control (ranges from off to high)
* 1/6" VGA CMOS; 640 x 480 pixels
* Video frame rate up to 30fps@VGA
* Focal distance: 2.4" - infinite (6cm - infinite)
* Lens: F#2.8 viewable angle: 54 degrees
* Magnetic accessory arm tool can be optionally placed on the camera head (great for picking up lost metal parts in hard to find places).
* Small CD will run in most standard CD ROM drives but e-mail us for an easy driver download link if your drive is not compatible.
* Len's outer diameter 9/16" (14 mm)
* Snapshot function available (see photo of trigger button)
* Flexible cable is about 26" (66 cm) length
* Cable outer diameter 1/3" (8.5 mm)
* 6.5' (2m) wire connection cable
* Application CD driver included
* Microsoft Windows XP/2000/ME/98 compatible (We also ran it on our Vista computer and it worked great. See bottom Q &A section.)
* Strong One Year Warranty from our USA distributor. We have had great experiences with this company and they are very helpful and friendly. Ask us for more details if you have any doubts but we have worked with them for a long time.
* We can answer basic questions however more involved Tech Support provided by our USA distributor. Easy installation instructions are included. The simple software is pretty straightforward. The camera is detected by your computer as a web cam.
This inspection system will deliver a live color image on your PC screen for time saving inspection of tough-to-reach auto parts, HVAC, industrial or mechanical applications. Check for damage, worn belts, hoses, engine interior, disc brakes, etc. without removing a lot of parts. After you capture images with the software, you can easily send the images to friends and colleagues, so you can easily discuss problems or troubleshoot issues using the photographic evidence.

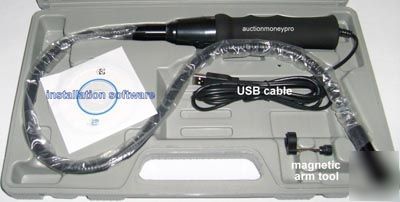

This magnetic arm tool (above) is included and can be clipped onto the end. Great for picking up keys or metal items in impossible to reach areas.
The cable is an "obedient" cable, meaning it maintains your desired fixed positions until you readjust it. Helpful for looking down drains, pipes, behind walls, etc.
Here is what the simple controls look like:
Will this run on my Vista PC? We installed it successfully on our Vista laptop. It runs great. On some Vista computers you may have to install it as an administrator or in XP mode, but we installed it without any headaches.
