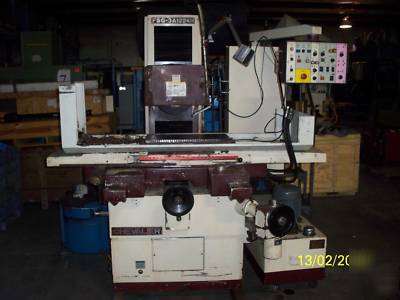

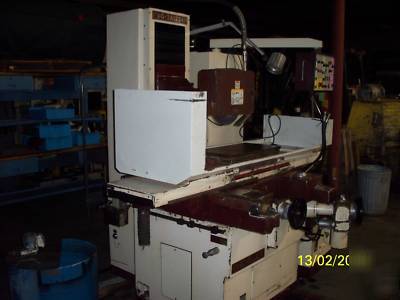

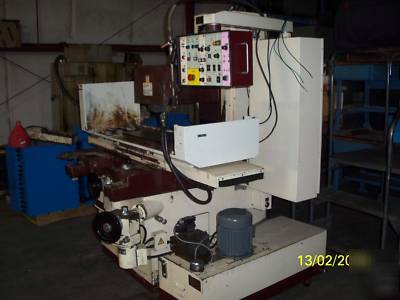

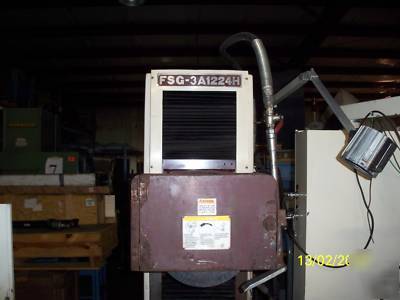

1995 CHEVALIER 12" x 24" 3 AXIS AUTO. SURFACE GRINDER
12" X 24" CHEVALIER "PRECISION" 3-AXIS AUTOMATIC
W/PROGRAMMABLE MICROPROCESSOR AUTOMATIC
INCREMENTAL DOWNFEED CONTROL (PENDANT MOUNTED)
MODEL: FSG-3A1224H S/N: NEW: 1995
TABLE SIZE:.......................................................................11-3/4" X 25-3/8"
MAX. GRINDING CAPACITY :.........................................................12" X 24"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC:.........................25-5/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL:............................ 27-1/2"
MAX. CROSSFEED TRAVEL, AUTOMATIC:............................................ 12"
MAX. CROSSFEED TRAVEL, MANUAL:.............................................13-3/4"
DIST. FROM SPINDLE CENTER TO TABLE:.......................................19-3/4"
VARIABLE TABLE SPEED, HYDRAULIC:...............................16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT:..................................1/8" TO 1-1/4"
CROSSFEED HANDWHEEL, PER GRADUATION:............................... 0.0025"
PER REVOLUTION:.............................................................................. 0.25"
MICROFEED, PER REVOLUTION:...................................................... 0.0005"
PER GRADUATION:......................................................................... 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED:......................... 0.00005" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION:..................................... 0.0005"
PER REVOLUTION:............................................................................... 0.05"
MICROFEED:........................................................................ 0.00005"/.0001"
RAPID TRAVERSE RATE:................................................................... 8" IPM
SPINDLE MOTOR:................................................................................. 5 HP
STANDARD GRINDING WHEEL:.................................... 14"DIA. X 2"W X 5"B
APPROX. WEIGHT ..................................................................... 4,850 LBS
APPROX. DIMENSIONS ................................................... 98" X 68" X 88"H

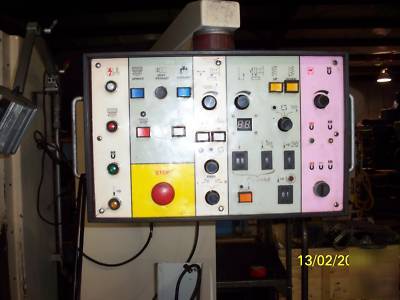

PENDANT MOUNTED AND MICROPROCESSOR CONTROLLED AUTOMATIC
INCREMENTAL DOWNFEED OF GRINDING WHEELHEAD FROM 0.00005"
T0 0.002" IN SURFACE OR PLUNGE MODES OF OPERATION. FULLY
AUTOMATIC GRINDING CYCLE INCLUDING RAPID ADVANCE OF
GRINDING WHEELHEAD, 0 T0 7 SPARKOUT PASSES, AND RETRACTION
OF WHEELHEAD TO A PRE-SET DISTANCE AT THE COMPLETION OF
HYDRAULICALLY ACUTATED LONGITUDINAL TABLE FEED
ELECTROMECHANICALLY ACTUATED FEED OF SADDLE
TABLE AND SADDLE GUIDE WAYS MADE OF SPECIAL STEEL RAILS
WITH HIGH ACCURACY STEEL ROLLERS
PRECISION NEEDLE ROLLER BEARINGS USED ON THE ELEVATING
FINE (MICRO) FEEDS GRADUATED TO .00005" FOR VERTICAL

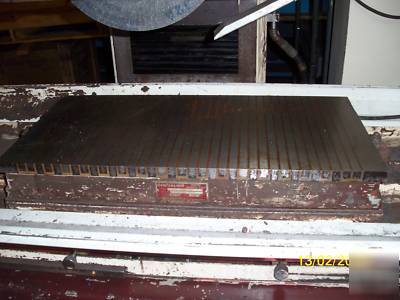

12" x 24" ELECTRO-MAGNETIC CHUCK
5 H.P. SPINDLE MOTOR, 3/60/230-460 VOLTS
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS
ONE HANDLE NEEDS REPLACED, EVERTHING WORKS.
