Anritsu ms 8608A digital mobile transmitter tester

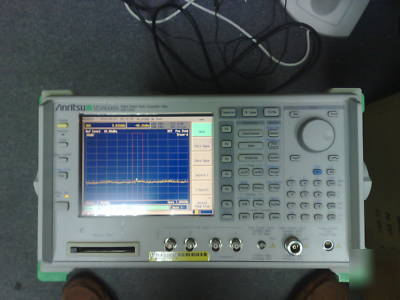

Hello! For Action is one of Anritsu MS8608A Digital Mobile Radio Transmitter Tester.

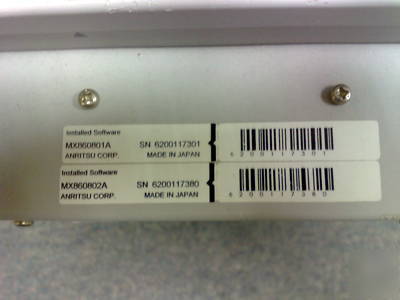

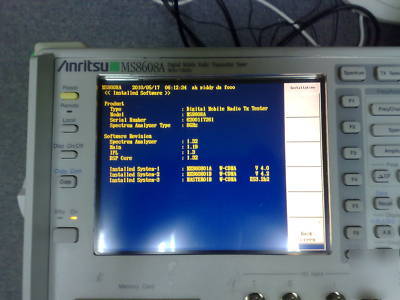

Unit have option MX860801A (WCDMA) & MX860802A (GSM) installed.
30 Days Warranty. 7 Days Right of Return.
MS8608A Digital Radio Transmitter Testers
MS8608A is transmitter testers equipped with an internal spectrum analyzer, a modulation analyzer and a power meter. Just one tester can cover the development and manufacturing of base stations and mobile stations, as well as the construction and maintenance of base stations.
* MS8608A supports 9 kHz - 7.8 GHz and high power inputs up to +40 dBm.
The spectrum analyzer has resolution bandwidths up to 20 MHz, meaning that it can readily support measurements of wide-band signals. The modulation analyzer realizes all Vector Signal Analysis (VSA) functions through high-speed DSP. The power sensor can perform highly accurate power measurements of 0.4 dB by using an amorphous power sensor.
Up to three measurement software options (such as W-CDMA, GSM/EDGE, HSDPA, WLAN/802.11, CDMA, 1xEVDO) can be installed simultaneously. Input signals can be selected from RF or I/Q inputs. For I/Q signals, balanced or unbalanced input can also be selected.

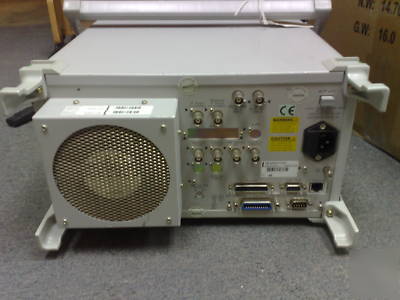

Each tester can be equipped with optional GPIB, RS-232C, and 10BASE-TEthernet interfaces for remote measurement. High-speed GPIB data transmission of 120 kbyte/sec enables high-speed measurement on the manufacturing line. The monitor uses an easy-to-see TFT color LCD.
Detail spec: http://www.eu.anritsu.com/products/default.php?p=14&model=ms8608a+%2F+ms8609a
