15" x 50" clausing-colchester inch/metric engine lathe

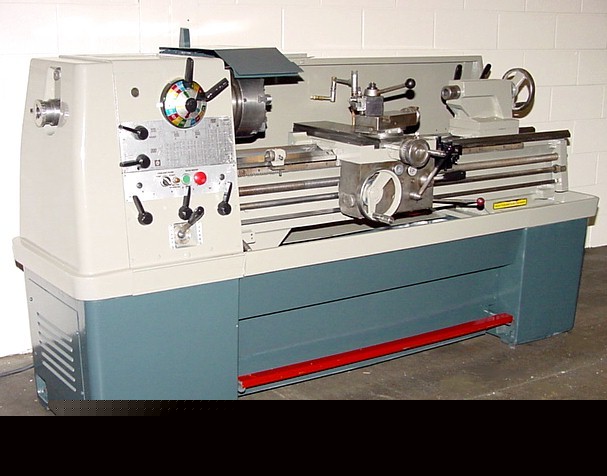

15" x 50" CLAUSING-COLCHESTER INCH/METRIC ENGINE LATHE
15" x 50" CLAUSING-COLCHESTER ENGINE LATHE
MODEL: 8031, S/N: 6/0055/26015, NEW: 1980
SWING OVER BED ....................... 15-1/4"
SWING OVER CROSS SLIDE ............... 9-1/2"
DISTANCE BETWEEN CENTERS ............. 50"
BAR CAPACITY THROUGH SPINDLE ......... 2-1/8"
HOLE THRU SPINDLE .................... 2-3/16"
SPINDLE NOSE, CAMLOCK SIZE ........... D1-6"
SPINDLE SPEEDS (16) .................. 25 - 2000 RPM
HEADSTOCK & TAILSTOCK SPINDLE TAPER .. #4 MORSE
TAILSTOCK SPINDLE TRAVEL ............. 6-1/8"
TAILSTOCK SPINDLE DIAMETER ........... 2-5/16"
WIDTH OF BED ......................... 11"
LONGITUDINAL (45) .............. .0015 - .040 IPR
CROSS (45) ..................... .00075 - .020 IPR
INCH (45) ...................... 2 - 72 TPI
METRIC (39) .................... .2 - 14 mm
DIMENSIONS ........................... 96" x 38" x 52"
APPROX WEIGHT ........................ 3,500 LBS
- TRAVEDIAL ON CARRAIGE LONGITUDINAL TRAVEL
- QUICK CHANGE UNIV GEARBOX PROVIDES WIDE RANGE OF INCH/METRIC FEEDS & THREADS
- SELF CONTAINED COOLANT SYSTEM w. FULL LENGTH REAR SPLASH GUARD
- 7.5 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE!
