Invention - high heel hugger (prevent floor damage)
Title of Invention: The Heel Hugger - Application Number 61/339,713 - Filing Date or 371 (c) Date 03/09/2010
Confirmation NO 8862 - Foreign Filing License Granted 03/09/2010 - The country code and number of your priority application, to be used for filing abroad under the Paris Convention, is US 61/339,713
Inventor: Kurt W. Henke. I am a US Citizen

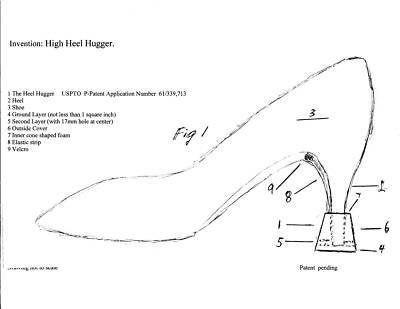

The Heel Hugger Fig. 1 ( 1) is a device, that slips over the high Heel Fig. 1 ( 2 ) to provide protection against flooring damage, especially on softer Floor covering materials such as wood or linoleum.. The hard Plastic Ground Layer Fig. 1 ( 4 ) shall not have sharp edges and be at least of one square inch in size. The second Layer Fig. 1 ( 5 ) shall be of same material as the Ground Layer, except it has a 17 mm (0.669") hole at the center for the Heel Fig. 1 (2 ) to enter and to rest in. The outside cover Fig. 1 ( 6 ) shall be of Plastic with a cone shaped Foam inside Fig. 1 ( 7 ) through which the Heel Fig. 1 ( 1 ) can enter and be held in place. An elastic strap Fig. 1 ( 8 ) is attached to the Heel Hugger Fig. 1 ( 1 ) and can be pulled up to a higher position under the Heel and be attached to Velcro Fig. 1 ( 1 ) to hold the Hugger in place while in use, and is not visible when not in use while walking.
Several Advanced, refined ,Patent searches have been performed. No match for my Invention has been found up to 3.6.2010 - My 83rd Birthday is coming up shortly. Time and resources will not allow me to complete this process and take advantage of the Business Opportunities.
