> Miller spot welder model lmsw-52T plus timer&cable 220V
Miller spot welder model lmsw-52T plus timer&cable 220V
MILLER SPOT WELDER MODEL LMSW-52TPlus TIMER & CABLEused only twice, GREAT CONDITION!!!WORKING PERFECTLY OR YOUR MONEY BACK GUARANTEED!!!! LMSW Series lightweight, air-cooled is portable, easy to operate, and provides a quick and effective means for spot welding mild, galvanized or stainless materials.welds up to 3/16 in (4.8 mm) total material thickness or two pieces of 16 gauge (3 mm) galvanized metal.includes a timer panel with a 0 to 5 second weld timer and power on/off switch, and comes with a 10ft. (3m) input power cord and 10ft. (3m)interconnecting cord.The timer panel can be mounted on any convenient location.Accommodates a wide variety of tongs and tips.Quick and easy adjustment for material thickness.Reversible for left- or right-hand operation.Input Power: LMSW: 220 VAC, 30 A
Net Weight: LMSW-52T: 42 lb (19 kg) without the timer & Cable
Output Power Range (calibrated with standard-type tongs)
* LMSW: 6 in (152 mm) 6,750 A
* LMSW: 12 in (305mm) 5,800 A
* LMSW: 18 in (457mm) 4,850 A
Rated Output : LMSW : 2.5 kVA at 50 % Duty Cycle
Work Capacity (combined thickness uncoated mild steel using 6 in [152 mm] tongs): LMSW: 3/16 in (4.7 mm)
Retail Price is: LMSW-52T 220 W/WELD TIMER
Owners Manual can be found online at: http:// /om/o708f_mil.pdf

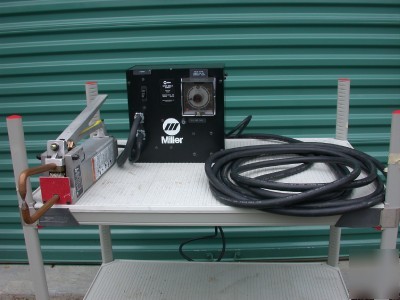

This listing is for a WONDERFUL CONDITION MILLER SPOT WELDER MODEL LMSW-52T with TIMER as can be seen in the pictures
Miller Spot Welder - LMSW-52T (220 Volt)
LMSW Series spot welders are lightweight, air-cooled units that are portable, easy to operate, and provide a quick and effective means for spot welding mild, galvanized or stainless materials.
* Resistance Spot Welding (RSW)
* LMSW Models weld up to 3/16 in (4.8 mm) total material thickness or two pieces of 16 gauge (3 mm) galvanized metal.
* Since this is the "T" model, it includes a timer panel with a 0 to 5 second weld timer and power on/off switch, and come with a 10ft. (3m) input power cord and 10ft. (3m)interconnecting cord. The timer panel can be mounted on the optional SWP-2 pedestal, or any other convenient location.
* Hand lever locks tongs firmly on material, ensuring positive, accurate fit-up.
* Accommodates a wide variety of tongs and tips.
* Quick and easy adjustment for material thickness.
* Reversible for left- or right-hand operation.
