Find-r-scope ir infra red light laser viewer

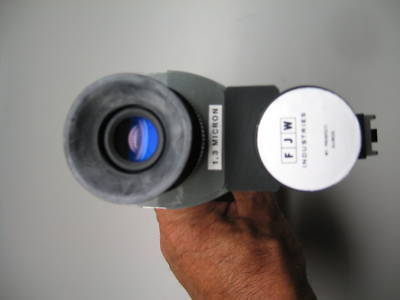

FJW Industries Infra Red Viewer
There is no model number on this unit but it appears to be an FJW model 84530.
The battery chamber is clean but I am unable to test the unit. The battery is most likely a mercury battery
but should be replaceable with FJW "C" sized battery replacement adapter.
Below are the specs from FJW site for the 84530:
IR/UV Microscopy Systems > IR Microscopy Systems
FIND-R-SCOPE Infrared Microscopy System Model 84530A
(1) standard "C" cell alkaline battery
>250-hours int., >375-hours continuous
The FIND-R-SCOPE 84530A is a self-contained, "permanently folded" Infrared Viewer with a spectral sensitivity of 350-1350 nm. It is designed to be mounted on a microscope utilizing the appropriate Microscope Attachment.
* Custom f/1.0 Infragon Lens
The FIND-R-SCOPE 84530A is a self-contained, "permanently folded" infrared viewer operating in the near-infrared region of the spectrum. A high-resolution image converter tube and high voltage power supply combine with precision optics to permit a clear view of objects or images which can not otherwise be seen by the naked eye.
The FIND-R-SCOPE Viewer is monocular and can replace either of the microscope eyepieces, or mount to the center accessory mount (if your microscope has one). Please note that use of the appropriate Microscope Attachment for your particular microscope tube O.D. is required. See part numbers 80386, 80596, or 80968 for the appropriate Microscope Attachment.

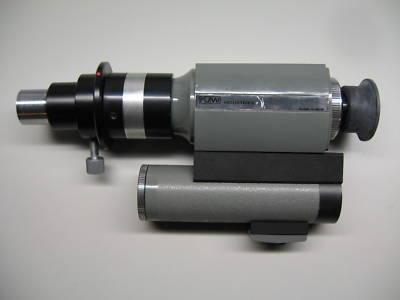

Note: The photo above shows an adapter attached for illustration only. It is not included with the system and must be ordered as a separate item. There are links to the available adapters on the right of this page.
