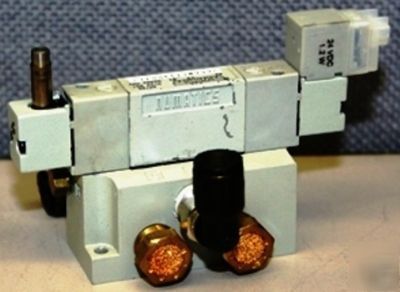

Numatics F21BB4413N000F 2-positon 4-way solenoid valve
Numatics F21BB4413N000F 2-Positon 4-Way 2002 Series Solenoid Valve F21BB4413N00061
* Elimination of internal wiring
* Buna-N seals provide leak-proof sealing
* Pusher piston high spool shifting force
* Adjustable port sizes utilizing interchangeable cartridge fittings
* Operating Pressure Range 28" Hg. Vacuum to 150 PSIG Vacuum to 10 bar
* Pilot Pressure Range 35 to 115 PSIG 2.5 to 8 bar
* Temperature Range (Ambient) -10 F to +115 F -23 C to +46 C
* Holding Current (Amps): 0.032
* F2: Series Identifier: Rubber Packed Spool Without Body to Base Plug
* 1: Port Size: 1/8 (All port types)
* B: Actuator: Solenoid Pilot with Flush Non-locking Override
* 4: Function: 2 Position, 4-Way
* 41: Mounting: Individual Base Mount, Side Ports, Individual Exhaust
* 3: Wiring Option: Straight 2 Pin Plug-in with Light (DC Voltage)
* N: Port Type: NPTF (Individual Base Only)
