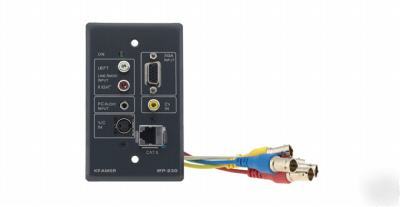

Kramer wp-230 vga audio line driver & wall plate
Manufacturer: Kramer Electronics Model/Part #: WP-230
The WP-230 is a wall plate line driver for computer graphics video signals with resolutions from VGA through UXGA and higher, composite video, s-Video (Y/C) signals and stereo audio signals. It provides controls to compensate for signal losses inherent in long cable runs.
High Bandwidth - 520MHz (-3dB) for 15-pin HD, 438MHz (-3db) for composite video & 155Mhz (-3db) for Y/C.
Front Panel Connections - 15-pin HD (PC) with 3.5mm stereo Audio and RCA for composite video and 4-pin for Y/C with 2 RCA s for stereo Audio inputs. RJ-45 (Pass-through).
Rear Panel Connections - 5 BNC s for the computer graphics signals, terminal blocks for the composite video and Y/C signals, and balanced stereo terminal blocks for each stereo Audio signal. RJ-45 (pass-through).
Level (Gain) Control - Line level Audio from 2 RCA s, composite video and s-Video (both Y and C).
EQ (Peaking) Control - 15-pin HD & composite video
Audio Level Controls - Left & Right for stereo Audio on 2 RCA s
Wall Plate Size - Single gang.
