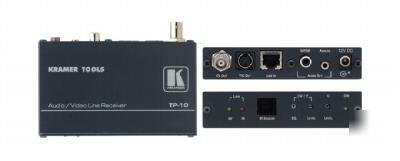

Kramer tp-10 video audio twist pair receiver ir repeat
Manufacturer: Kramer Electronics Model/Part #: TP-10
The TP-9 and TP-10 are a twisted pair transmitter and receiver set for composite or s-Video (Y/C) signals and unbalanced analog stereo or S/PDIF digital audio signals. The TP-9 transmitter converts the video and audio to a twisted pair signal and the TP-10 converts the twisted pair signal back into video & audio signals.
Bandwidth - > 70MHz (-3db)
Audio - S/PDIF or unbalanced analog
IR Repeater - 2 IR emitter Outputs (TP-9) & 1 sensor (TP-10)
Twisted Pair Input/Outputs - RJ-45 connector
Level (Gain) & EQ (Peaking) Controls - TP-10
