> 6 det-tronic flame detectors and panel
6 det-tronic flame detectors and panel

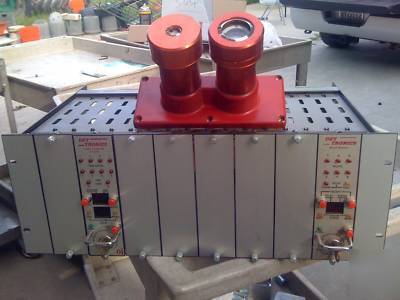

Up for sale 1 New - Det-Tronics Detector
1 - Det-Tronics rack-mountable UV/IR controller. Type R7494 B5001. The R7494 controller continuously monitors up to eight detectors and generates the fire alarm in
response to the detector's fire signal. The front panel provides switches for selecting mode of
operation and initiating test functions.
Ignores false alarm sources such as arc welding, x-rays, gamma radiation and radiation from
Fast response typically 1 to 5 seconds for an intense hydrocarbon fire
Each detector independently registers an alarm
Microprocessor control provides continuous diagnostics and automatic fault identification
Automatic oi for both UV and IR sensors
Explosion-proof (flame-proof) detector housing
Count test mode allows monitoring of actual detector output
Voting circuitry for improved false alarm rejection
Up to eight controllers can be wired to provide up to 64 voting detector zones
NOTE: Check X-Series flame detector pulse retrofit options.
6 - UV/IR Flame detectors. (only one in picture, but does include 6)
Flame P/N003894-014 DESC : C7052J500 UV/IR DET, AL , 3/4 DESC : CSA, FM, CSFM S S/N 13329 IR8737 W/LIT UV/IR FIRE DETECTOR Type C7052J5000 Approved Class 1 Group B,C,D Class II Group E,F,G Temp Rating :-40c To 75c Included 2each Part p/n 00389-002 DESC: DE 3895-002 IR SENSOR MOD.
