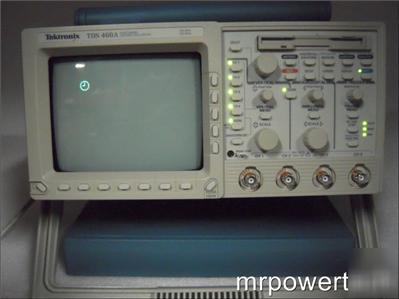

Tektronix TDS460A 4 ch. 400MHZ oscilloscope w/ options
Tektronix TDS460A 4 Ch. 400Mhz Oscilloscope W/ Options
Tektronix TDS460A Oscilloscope, Digital: 400MHz,100MSa/s,4ch (Stand alone) Calibrated until 2-09
The Tektronix TDS460A oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix TDS460A oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Performance Characteristics of the TDS460A
