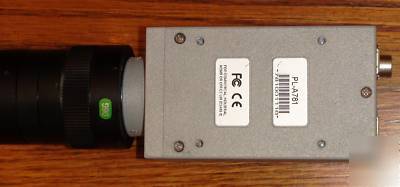

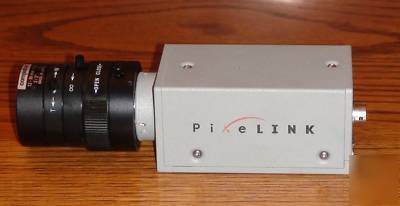

Pixelink pl-A781 6.6 mp mono vision camera with lens
Description of PixeLink PL-A781
The PL-A781 is a cost effective high-resolution monochrome inspection camera. The 6.6 megapixel resolution allows fine details to be resolved within a larger field of view. The camera is fully controlled by software and can be synchronized with an external trigger and strobed illumination. A rich set of features makes the PL-A781 very flexible and easy to use. Fully enabled by software, the PL-A781 can be integrated quickly into industrial vision applications.
* 6.6 Megapixel Monochrome Resolution
* IIDC 1.31 (DCAM) Compatible with Extended Features
* External Trigger (TTL to 12 V)
* Fully Supported by Software, for Operation "Out of the Box"
* 1" CMOS 2208 x 3000 resolution (7.73 mm x 10.50 mm - 13.1 mm diagonal)
* Spectral Range 400 1000 nm
* Dynamic Range 56 dB linear (TBD)
* S/W or H/W (external) trigger (TTL to 12V)
* Two user-programmable outputs that can be used stand-alone or synchronized to trigger
Exposure (0.063 ms to 2 seconds)
White balance and color gains
Brightness (black level adjust)
* Frame Rate (2 fps to max)Trigger & Strobe Modes
* Region of Interest & Decimation
* Pixel format 8-bit or 10-bit
* On-camera configuration memory
* FPN and PRNU correction (gain/offset correction, flat field correction per pixel)

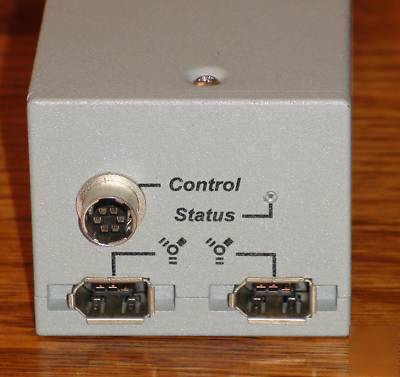

Two FireWire (IEEE 1394) connectors allow daisy chaining of the camera

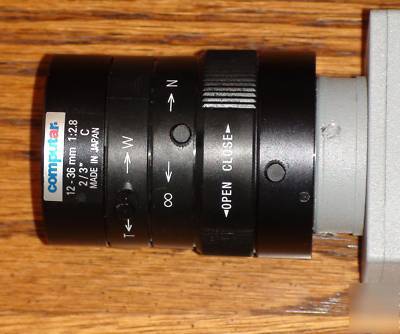

* Standard C-mount 1" optics (Compatible with most 2/3" optics.)
* IR cut-off protective filter
* M3 threaded holes 4 in front plate around C-mount and 4 in camera base
* Power supplied over the FireWire bus
Standard Configuration (PL-A782)
H x W x L: 1.65" x 1.97" x 4.02"
* Vibration 10 G (20 to 200 Hz)
* Temperature 0 C to 50 C (non-condensing)
* Signals indicate idle, operating, warning and failed status
