Extra heavy duty tooling cabinet w/ jib crane

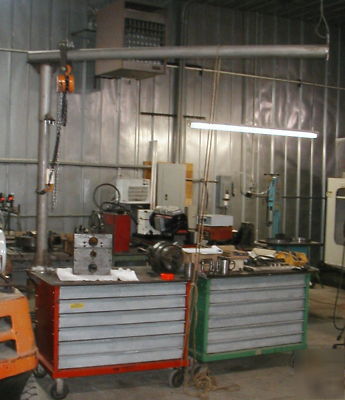

Here is one special item. The shop created this to load heavy parts into their cnc mill. It consists of a very heavy duty work cart made locally (Erie, PA) by a local steel service center. The jib crane was added by the shop themselves.
Here s the info from the company website on the drawer unit.

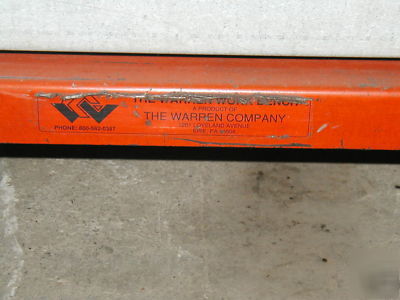

THE WARREN PORTABLE INDUSTRIAL WORK BENCH

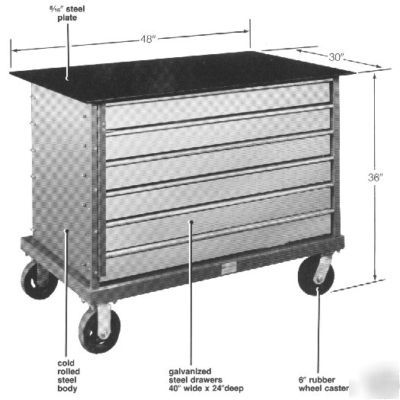

Size - 48" wide x 30" deep x 36" high
Weight capacity - Designed and built for heavy duty use, the unit has a 2,000 lb. overall capacity with 200 lbs. maximum per drawer.
Body - 16 Gauge Cold Rolled Steel
Drawers - 14 Gauge Galvanized Steel Drawers, 40" Wide x 24" Deep in 4" and 8" heights
Custom Options - Available in quantity
Color - standard finish, green enamel (other colors available)
Top - Sizes; Thickness; Finish; Border
Drawers - Combination of 4", 8" and 12" heights

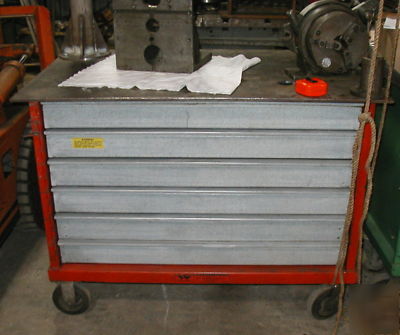

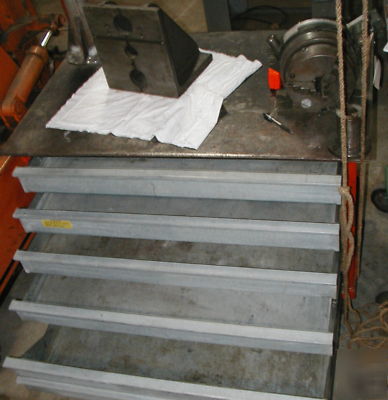

This unit has one drawer (the bottom one) 8 deep. The others are 4 deep.

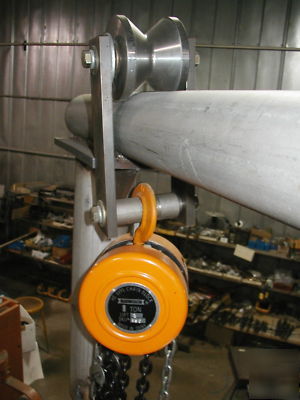

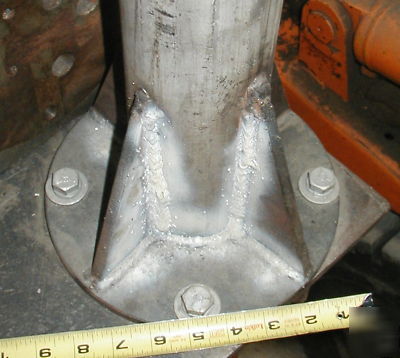

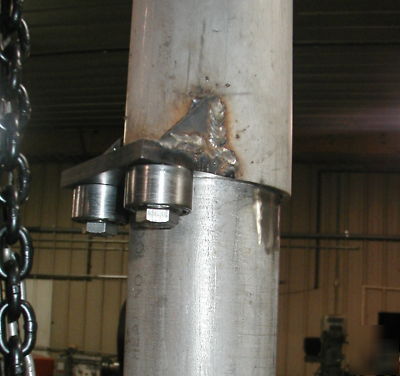

The crane is made of 3 diameter aluminum. The column height is 66 inches and the arm length is approximately 90 inches. The hoist isn t the greatest. It s a Central Machinery (China) one-ton unit.
The Warren Co. sells the drawer unit new for $1550. The hoist costs $200 new. The crane is home made but still would be worth about $1000 new.
