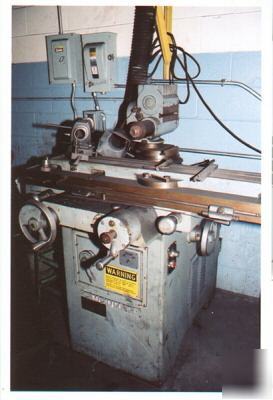

Cincinnati-milacron universal tool and cutter grinder
#2T CINCINNATI-MILACRON Universal tool and cutter grinder, Model DO, S/N 31512T5Z-0115, New 1972
Length between right and left hand tailstocks 27
Length between tailstock and work head 21
Table working surface 6 x 36
Swivel table adjustments-Tange bar taper setting
device (toward & away from wheel head) 5 per foot on diameter
-Fine adjustment taper setting device
(toward& away from wheel head) 2 per foot on diameter
Table graduations in center 90
Vertical movement of grinding wheel spindle 10
Grinding wheel head swivels 360
Grinding wheel head tilts above & below center 15
Maximum distance, centerline of spindle to tabletop 13
Spindle speeds, 6 wheel, surface speed 6,022 FPM 3,837 RPM
3 wheel, surface speed 5,887 FPM 6,442 RPM
Swiveling and tilting wheel head
Duplicate controls operating the machine at the front, right or left hand end of the table, or at the rear, right or left hand side of the column
Anti-friction ball bearing table rolling in replaceable hardened steel v-ways
1 H.P. 3/60/230-460 volt grinding wheel drive motor and electrical controls
Approximate weight: 3,150 lbs.
Approximate dimensions: 58 FB x 91 LR
