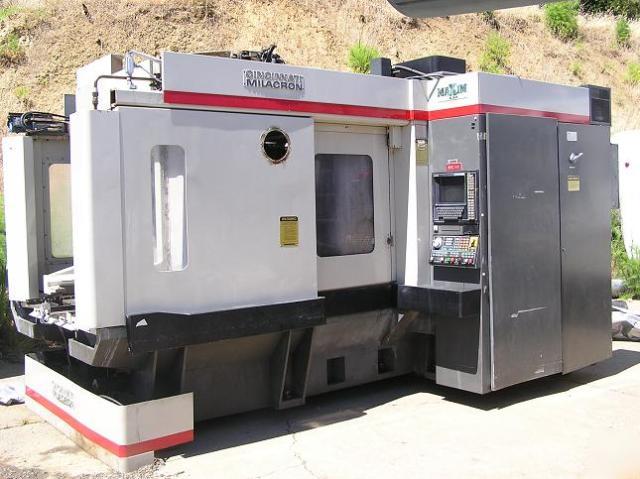

Cincinnati 630 maxim 6 pallet verticle machine center
CINCINNATI 630 MAXIM 6 PALLET VERTICLE MACHINE CENTER
* CINCINNATI MAXIM 630 6-PALLET, Acramatic 950 CNC, X=40.4", Y=31.5", Z=31.5, (6) 24.8" Square Pallets, 30 HP, 7000 RPM, 90 Station Tool Changer, 1994
* CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 40.4"
Vertical Travel (Y-Axis) ............................... 31.5"
Spindle Travel (Z-Axis) ................................ 31.5"
Pallet Dimensions ...................................... 24.8"x24.8"
Maximum Pallet Load .................................... 3000 LBS
Number of Pallets ...................................... 6
Number of Index Positions............................... 360
Feed Rate, All Axes .................................... .1-984 IPM
Rapid Traverse, All Axes ............................... 984 IPM
Spindle Horsepower...................................... 33 HP
Spindle Speed Range..................................... 10 - 7000 RPM
Spindle Taper .......................................... #50 CAT
Number of Tool Stations ................................ 90
Electrics............................................... 230/460/3/60
Approximate Machine Dimensions.......................... 202" x 129"
Approximate Machine Height.............................. 114"
* Approximate table Dimensions = 12' x 12' x 4' high
* Approximate Machine Weight.............................. 40,000 LBS
* HAS ALL DRAWINGS AND MANUALS
Product: 6 PALLET VERTICLE MACHINE CENTER
