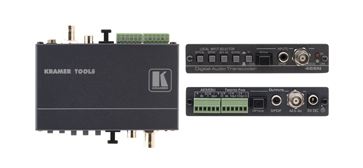

Kramer 466N digital audio transcoder aes twisted pair
The 466N is a high-performance transcoder for digital audio signals. The unit converts 1 of 4 digital audio formats or 1 twisted pair input to 4 digital audio formats and 2 twisted pair outputs simultaneously.
* Input - 1 AES/EBU (110?), 1 AES-3id (75?), consumer S/PDIF (75?), optical TOSLINK , and 1 CAT 5.
* Output - 1 AES/EBU (110?), 1 AES-3id (75?), 1 consumer S/PDIF (75?), 1 optical TOSLINK , and 2 CAT 5 simultaneously.
* Sampling Rate Conversion - Up to 192kHz at 24 bits.
* System Bit Selection - Professional or consumer (selectable).
* System Range (Twisted Pair) - Up to 100m (300ft).
* Cable (Twisted Pair) - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
* Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Rack Adapters: RK-3T , RK-6T , RK-9T , RK-1T2PT , RK-2T1PT
