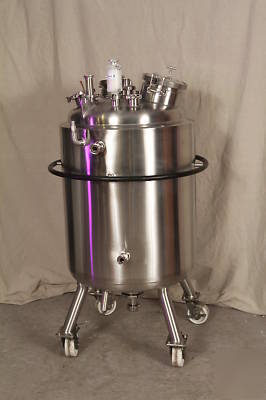

53 gal. jacketed reactor mixing tank 316L mint
53 Gal. Jacketed/ Pressurized Sanitary SS 316L
Last used in a pharmaceutical plant.
Meets asme and 3A specifications.
http:// /user/ToollabSales?feature=mhw4
http:// /ProductDetails.asp?ProductCode=TL-V-101&Show=TechSpecs
Approximately 53 Gallons/200L.
29" diameter of jacket not including ports for jackets.
Side ports sticks out 2.5" - 3" inches.
Has a domed top and sloped bottom.
Tank has a rubber coated handle.
(3) 1.5" ports with 1.5" tri-clamp fittings. 1 port includes an end cap. 1 port includes a removable 4" pipe extension. 1 port has a removable kleenpak filter.
(1) 4" port with a 4" tri-clamp fitting. Includes a removable sight glass.
(2) 2" port with 2" tri-clamp fittings. One port has a removable sight glass and one port has a white plastic end cap.
(1) 3" port with 3" tri-clamp fitting. Includes a 3" -1.5" TC END CAP reducer.
(1) 6" port with 6" tri-clamp fitting. Includes one 6" -2" TC END CAP reducer.
(1) 8.5" Hinge door opening up top with 7.5" TC fitting.
On the top, there are 2 picking loops in case the unit needs to be lifted with a crane.
(2) 1.5" threaded In and out ports for the jacket. The threaded ports are screwed to a removable 1.5" TC fitting.
Jacket has not been tested but appears to be in working order.
Shell thickness (.187), head (.187)
Vessel MAX. Allowable Working Pressure.
Vessel MIN. Design Metal Temperature
HTS MAX. Allowable Working Pressure
HTS MIN. Design Metal Temperature
(1) 1.5" threaded drainage port for the jacket on bottom near the edge.
(1) 4" drainage port with a 4" TC fitting attached to a removable 4"-1.5" tri-clamp reducer at the bottom of the cone. There is a 1.5" pipe with 1.5" TC fitting extending from the 4" drainage port.
Manufactured by Precision Stainless.
