49" tbl 3HP spdl acer e-mill 3VS vertical mill, base ma
49" Tbl 3HP Spdl Acer E-Mill 3VS VERTICAL MILL, Base Ma

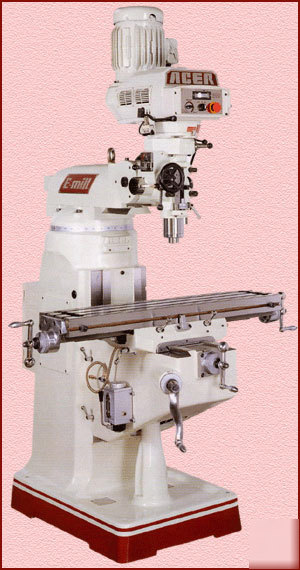

49" Table 3HP Spindle Acer E-Mill 3VS VERTICAL MILL, Base Machine
SPINDLE SPEED: VARIABLE SPEED (0 - 4500 RPM)
Runs on 220 Volt Single Phase or 3 Phase (no change in wiring)
Easy to read meter registers RPM accurately
Fan cooling system to dissipate heat efficiently.
Protective outer case for inverter keeps chips and coolant
Automotive painting process ensures life-long appearance.
X, Y axes & knee hardened & ground dovetail ways to HRC 52 .
3 HP Variable Speed Baldor Super E Spindle Motor (U.S. made)
CNC Vector-Type A.C. Frequency Drive saves up to 35% on energy
Metal, not plastic insert, key and moving pulley for low maintenance
Newall DRO (Topaz, 2-axis, 16x36 travel, 0.0002" Res.Scale)
Align Feed Power Longitudinal/Cross/Knee
Servo Cross Feed (M-9521-140/M-9521-150)Installation Fee
R-8 Collets (1/8"- 3/4"; 11pcs/set)
Riser Block (4"/6"/8") Installed Fee
