3AXIS nema 42 stepper motor 2975OZ cnc router & mill

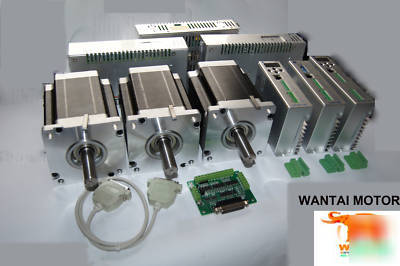

3 PCS Nema 42 Stepper Motor With 2975 OZ-In Holding Torque,
3 PCS Stepper Motor DriverM880, 80VDC, 7.8A, 256 Microstep,
3 PCS 200W,24VDC Power Supply,
Holding torque: 210 Kg-cm 2975oz-in
2, Stepper Motor Driver 80VDC,7.8A, 256 Microstep
The M880A is a high performance microstepping driver based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drivers in the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motors
High performance, cost-effective ,
Pure-sinusoidal current control technology ,
Pulse input frequency up to 300 KHz ,
TTL compatible and optically isolated input ,
Automatic idle-current reduction ,
16 selectable resolutions in decimal and binary, up to 51,200 steps/rev ,
Suitable for 2-phase and 4-phase motors ,
Support PUL/DIR and CW/CCW modes ,
Short-voltage, over-voltage, over-current and over temperature protection
