Tektronix 1780R vector waveform video measurement set
Tektronix 1780R Vector Waveform Video Measurement Set

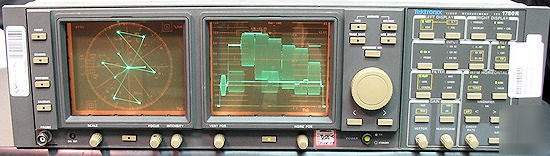

As seen in image above this video measurement set powers up with all knobs and switches functioning. Testing was done with color bar generator and at this level of testing everything looks good. The screens are bright and clear and they both have good scale lights.
The 1780R Series Video Measurement Set offers features for precise evaluation of studio and transmission performance. This multi-function instrument is a wide bandwidth, multi-input, waveform/vector/SCH measurement package. The advantages of separate waveform and vector instruments are provided in a single rack width, 5.25 in. or 133.4 mm high package. In addition, specific measurements take advantage of the 1780R Series' shared waveform monitor and vectorscope internal processing. Separate, optimized waveform and vector display CRTs allow simultaneous monitoring of several video parameters.
