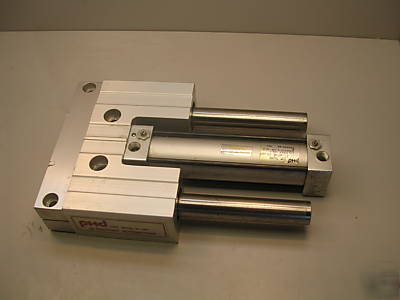

Phd air slide, 4" travel, 1-1/8" bore, SDD24 X4-e-J2-pb
SLIGHTLY USED PHD AIR POWERED SLIDE, SERIES "SD" SLIDE ENGLISH
1-1/8" BORE, 4" STROKE, 3/4" GUIDE SHAFTS,
Tool plate face is 1-1/2" by 5-7/16" with (4) tapped holes and (2) dowel holes
E= MAGNET PISTON FOR POSITION SENSING
J2=- Normal fit dowel pin holes in the tool plate
PB= Port Contol for Speed Adjustments
PART NUMBER- SDD24 X 4 -E-J2-PB
