Anti vandal heavy duty access control keypad

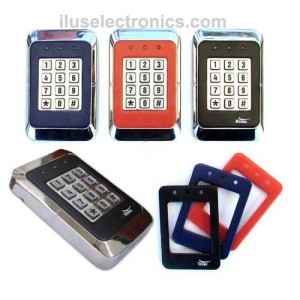

Anti Vandal Heavy Duty Access control Keypad
The PKM-8 is a durable, feature loaded and sophisticated Access Control Keypad . It is simple to operate by keying in a code which then generates a 12V strike to the electric door lock. A tone will sound and a green LED light will blink confirming that the correct code was entered. Programming and management of the codes is done from the keypad.
The PKM8 is a heavy-duty nickel-plated metal housing capable of withstanding vandalism and tampering. The PKM8 includes 3 interchangeable decorative panels. The features of the PKM8 can be utilized for many applications that require limited, pre-assigned access, such as: AC temp setting, store refrigerator and freezer, warehouse, etc.
The PKM8 can be integrated with other access control means by using the feature that allows remote operation and override.
* Utilizes advanced micro-computer technology
* Up to 250 of code sets, and 8-digits per code can be programmed to operate the door lock relay
* 10,000,000 optional codes per set
* Technician setting programmable 4-digit code
* In the event that the manager s code is lost the system can be returned to the original factory settings
* As a safety feature, when the wrong code is entered 3 times the keypad locks for 60 seconds and an alarm sounds
* Unlock release time: from 1 to 99 seconds
* Vandalism resistant. Anti dismantling Micro switch is activated when a vandal attempts to dismantle
* Constant door closing status: The system will remind you with a sound if the door is not closed properly (optional if door switch and + 5Vdc P.S. are added)
* 3 interchangeable decorative panels are included
* will operate of 12VAC or 12VDC
* Dimensions: H - 4 3/8 W - 2 7/8 D - 1 3/8 inch
* Sales tax will be charged for Florida residents.
* ILUS Electronics provides return/exchange on some of our products. Please read the return policy below and contact us if you have any questions.
We look forward to doing business with you. Feel free to send us a note or contact us via skype if you have any questions or concerns. Thank you.
