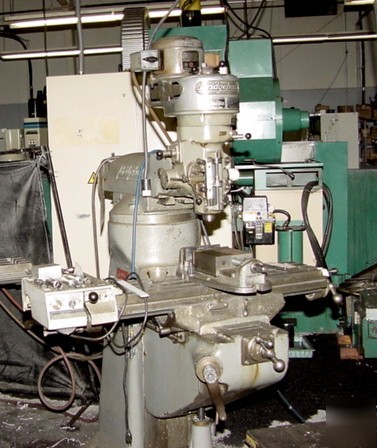

36" Table 1HP Spindle Bridgeport J Head VERTICAL MILL, Step-Pulley Head, Lyman Table Feed, R-8
9" X 36" BRIDGEPORT STEP PULLEY
MODEL: J, S/N: 12/BR-152279, YEAR: 1974
TABLE WORKING SURFACE .................... 9" X 36"
NUMBER OF T-SLOTS ........................ 3
LONGITUDINAL ....................... 24"
CROSS .............................. 12"
VERTICAL, KNEE ..................... 16"
QUILL .............................. 5"
MAXIMUM / MINIMUM DISTANCE,SPINDLE NOSE
TO TABLE TOP ....................... 18-1/2" / 2-1/2"
MAXIMUM / MINIMUM DISTANCE, CENTERLINE TO SPINDLE
TO FACE OF COLUMN .................. 18-3/4" / 6-3/4"
RAM TRAVEL ............................... 12"
HEAD TILT, LEFT & RIGHT .................. 45 DEGREE
HEAD TILT, FRONT TO REAR, EACH WAY ....... 45 DEGREE
POWER QUILL FEEDS (3) ................ .0015, .003, .006 IPM
SPINDLE SPEEDS(8) ........................ 80 - 2,720 RPM
SPINDLE TAPER............................. R-8
MAXIMUM COLLET CAPACITY................... 3/4
APPROXIMATE WEIGHT........................ 1,800 LBS
LYMAN POWER FEED FOR TABLE LONGITUDINAL TRAVEL
1 HORSE POWER BRIDGEPORT MODEL: J MILLING HEAD S/N: J-157331
*INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE*
