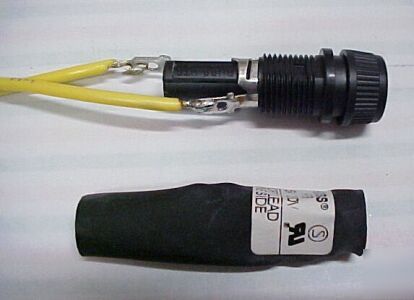

3 bussmann 5 x 20MM panel mount fuse holders 16A 250V
The part number (HTB-22M-1K0715) breaks down as follows:
2 - Body Configuration and Mounting Knob Holders: Low Profile (Rear Panel Hex-Nut)
2 - Rear Terminal Configuration: Solder / 3/16" Quick-Connect (in-line)
M - Fuse Carrier: 5 x 20 mm / millimeter
1K0715 - Best I can determine, this portion refers to the lead size, color, length, etc.
The leads are 12" and 18" long, and are printed with the following:
E-69510 & E-66786 18 AWG (UL) MTW Class K or AWM STYLE 1015/1230 VW-1 600V CSA TYPE TEW 105C LL41840 FT-1
HTB Panel Mount Series Fuse Holders for 5 x 20mm Fuses
- All holder bodies have the option of using 1.4" x 1 1.4" or 5 x 20mm carriers
- Withstands 15 to 20 Lb-In torque to mounting nut when mounting fuse holder to panel
- High temperature, flame retardant, Thermoplastic meets UL 94V0
Panel thickness (max): .30" (7.62mm)
- UL Recognized: IZLT2, E14853
- CSA Component Acceptance: Class 6225-01, File 47235
- VDE Certified: 136128, HTB-XXM
- SEMKO Certification: Ref. #0146149/01, HTB-XXM
(11 to 16) lots: Three pounds
(17 to 22) lots: Four pounds
(23 to 27) lots: Five pounds
