100 gal pfaudler reactor - glass lined - 100/fv -#6071

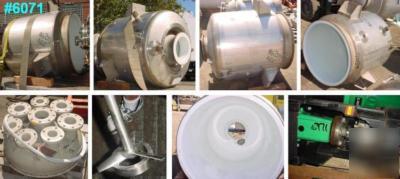

100 GALLON PFAUDLER REACTOR - GLASS LINED - 100/FV - JACKETED
1 - used 100 gallon Pfaudler Glass Lined Reactor. Built 1995. Rated 100 psi/FV internal at 300 deg. F MAWP. -20 deg. F at 100 psi MIN. Vessel is SA-240 T-316L stainless steel with internal glass lining. Jacket pressure t.b.d. Unit is approx. 30 in. inside dia. x 32 in. straight side with dish bottom and approx. 10 in. center bottom outlet. Unit has a damaged spot which requires repair near the bottom outlet (approx. 4 in. x 3 1/2 in. area). Lug mounted. Dome top with 8 flanged inlets including 5 in. for agitator (4) 3 in. (3) 4 in. National Board #48125. Serial number J001651. Driven by .5 HP/.373 kw Lightnin Vektor model V5S37 agitator. Vektor S/N 95/E35655. 230/460V. UL listed. Metallic shaft is approx. 1 in. dia. x 52 in. long with (3) pitched turbine blades & stabilizer ring (ground smooth welded) Approx. 8 in. blade span. F.O.B. - Cleveland OH
