honeywell vision pro 8000 TH8321U1006 thermostat

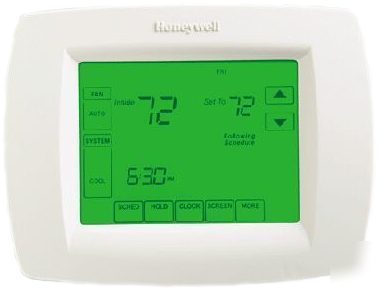

Honeywell Vision PRO 8000 Touchscreen - Effortless, 7-Day Programmable Thermostat - TH8321U1006
The Honeywell TH8321U1006 VisionPRO universal programmable thermostat features dehumidification control and automatic/manual changeover. It is designed to be used with heating and cooling systems with up to 3 heat and 2 cool stages.
The Honeywell TH8321U1006 programmable thermostat features an easy-to-read screen that displays the current temperature, set temperature and time.
The TH8321U1006 digital thermostat allows you to select multiple days, making the thermostat easy to customize for unique schedules.
During a power failure, this thermostat still keeps time. It also automatically updates for daylight savings time.
When setting the schedule, armchair programming allows you to remove the thermostat from the wall.
* Model: Honeywell TH8321U1006
* Product Type: Digital programmable thermostat
* Product Dimensions: 1.25'' L x 6'' W x 4.56'' H
* Product Color: Premier White
* Application: Heat/cool or heat pump with auxillary heat
* Programmability: 7 day multiple day programming or non-programmable
* Changeover: Auto/Manual selectable
* Stages: Up to 3 heat/ 2 cool heat pump, up to 2 heat/ 2 cool conventional
* Terminal Designations: R, RC, W (O/B), W2 (AUX), Y, Y2, L, E, G, C, S1, S2
* Switch Positions (Fan): Auto-On- Circ
* Switch Positions (System): Heat-Off-Cool-Auto-Em. Heat
* Setting Temperature Range (F): 40 F to 90 F in heat, 50 F to 99 F in cool
* Setting Temperature Range (C): 4.5 C to 32 C in heat; 10 C to 37 C in cool
* Differential Temperature: +/- 1 F
* Differential Temperature: +/- 0.5 C
* Electrical Ratings: 20 to 30 Vac or 750 mV
* Heat Current: 1.0 A running
* Cool Current: 1.0 A running
* Fan Current: 0.6 A running
* Operating Humidity Range: 5 to 90% RH (non-condensing)
* Sensor Element: Thermistor
* Includes a backlit display for easy reading and programming
* Features the ability to select multiple days so that you can sync thermostat with your unique schedule
* Retains time settings during power failures
* Automatically updates for daylight savings time
* The keypad can be partially of fully locked
* When setting the schedule, armchair programming allows the thermostat to be removed from the wall
* Includes a large display that shows the current temperature, set temperature and time simultaneously
* Tells you when to replace or service batteries, filters, etc
