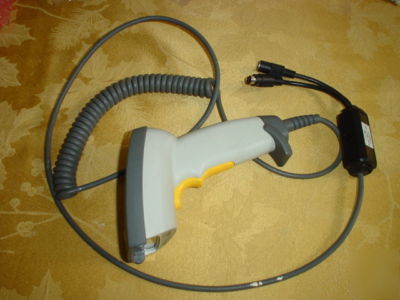

Symbol LS4000I model L84006I-I100 hand held scanner
Hand-held Laser Barcode Scanner
https://docs.symbol.com/manuals/3789802a.pdf
4.8 to 14 VDC (max) 180 mA @ 5V typical
4.8 to 14 VDC (max) 2 mA @ 5V typical
4.8 to 14 VDC (max) 200 mA @ 5V typical
4.625 to 5.25 VDC (max) 200 mA @ 5V typical
4.625 to 5.25 VDC (max) <500 A @ 5V typical
Decode Capability The LS 400Xi can be programmed to decode the following
code types: UPC/EAN, Bookland EAN, Code 39, Code
39 Full ASCII, Trioptic Code 39, Code 93, Codabar,
Interleaved 2 of 5, Code 128, EAN 128, Discrete 2 of 5,
MSI Plessey, and PDF417. Set code length(s) for any linear
code type. The LS 400Xi can autodiscriminate between all
these code types except for Code 39 and Code 39 Full
ASCII. Transmission of decoded information depends on the
capabilities of the attached terminal.
Beeper Operation User-selectable: Enabled, Disabled
Roll (Skew) Tolerance 10 from normal
1-D Decode Depth of Field See LS 400Xi 1-D Decode Zone on page 4-5
2-D Decode Depth of Field See LS 400Xi 2-D Decode Zone on page 4-6
Print Contrast Minimum 20% absolute dark/light differential, measured at 675 nm.
*For direct host power connection, make sure the host terminal supplies sufficient power for the
specified operation. Symbol is not responsible for damage to host equipment or system misoperation
due to an insufficient power condition.
LS 4000i Series Product Reference Guide
(@8 in. (20 cm) on low density bar codes)
Operating Temperature 32 to 104 F0 to 40 C
Storage Temperature -40 to 140 F-40 to 60 C
Humidity 5% to 95% (non-condensing)
Coil Cable Length 9-12 ft. 274-365 cm (depending on host)
Durability 4-ft. drop to concrete1.2 m
Laser Classifications CDRH Class II
