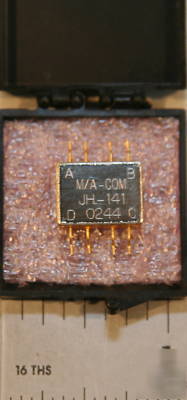

M/a-com jh-141 quadrature hybrid 1-2 ghz 3 db
M/A-Com JH-141 High Frequency Quadrature Hybrid 1-2 GHz 3 dB
3 dB Hybrids are ideal for dividing a signal into two signals of equal amplitude and a constant 90 or 180 phase differential and for Quadrature combining or performing summation/differential combining.
* Insertion Loss: 0.3 dB Max
* Amplitude Balance: 1.0 dB Max
* Deviation from Quadrature: 5 Max
* Impedance: 50 Ohms Nominal
* Input Power: 25 Watts Max @ +25 C
