> 8 inche dial face metric scale / great quality

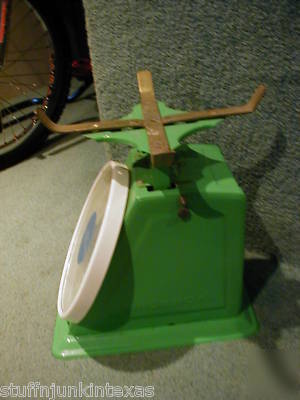

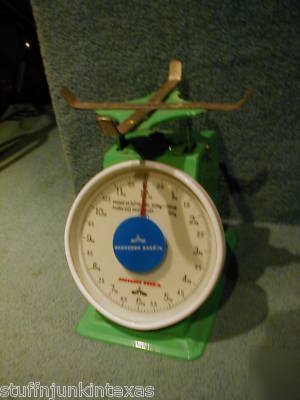

8 inche dial face metric scale / great quality
Product Approval : PDM 071-2007
Max error tolerance : 75 g
Min error tolerance : 25 g
Dimensions (LxWxH) : (280x240x280) mm
Steel housing coated with powder coatings
Stainless steel round pan ( t 272 mm , d 209 mm, h=50 mm)
Plastic reading cover (transparent PC Plastic)

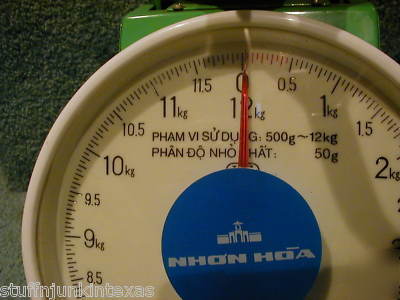

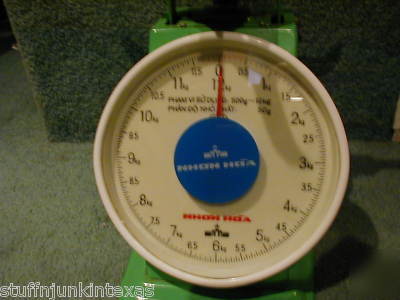

Dial chart (ABS snow white) :Silk printing, outside diameter 200.5 mm, printing diameter 185 mm, height h=13 mm, thick e=1.8 mm.
Letter NHON HOA engraved on both sides plates
Scales are designed with the bimetal for temperature compensating from - 10 C to 40 C
- Housing : shaped from mild-steel and coated with special powder paint remaining good when climate change
- Dial Face : By ABS Plastic, Numerical value and Marks printed with high quality technique. Scale divisions is easy for reading.
- Plastic cover : Transparent PC plastic.
- Pan : Stainless steel round pan
- Springs : Made by standard Carbon steel guarantied flexibility, Nickel plated or black plated to prevent form corrosion
-. Cotter Pins : All pin made by stainless steel
-.The Other : Parts are made of mild-steel, coated nickel resisting rust.
Color of dial face and pointer keeps unfading and stability event at outdoor exposure
