> Thermal arc 100047B-001 fabricator 210 mig welder

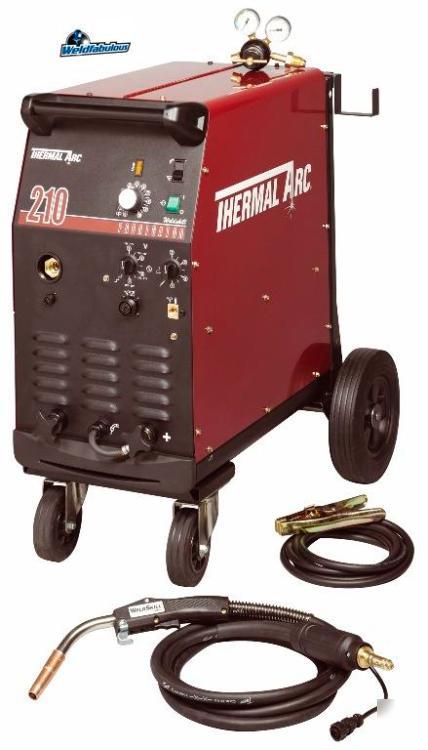

Thermal arc 100047B-001 fabricator 210 mig welder
Thermal Arc 100047B-001 Fabricator 210 Mig Welder
Thermal Arc Fabricator 210 MIG Welder Package - With FREE Thermal Arc Calret auto darkening helmet. $185.00 value Model: 100047B-001 The Fabricator 210 is a 208-230 Volt integrated MIG machine with a leading performance of 250 Amp maximum output @ 30% Duty Cylce, 16 voltage steps, spool gun ready and spot/stitch timers. Supplied as standard with a wheel kit, cylinder rack, regulator, comprehensive setup chart and quality Tweco Weldskill gun. The Fabricator 210 is extremely versatile with an optimized low end performance for .023" down to 20 Amps and a top end of 250 Amps to comfortably run .045" wires. Fabricator 210 is the ideal choice for sheetmetal work, training schools and light fabrication up to 1/2" plate. Applications include:
* Aluminum welding with a spool gun
* NEW 16 Voltage Taps! Providing a wider operating range of 20 to 250Amp with an extremely smooth and stable arc characteristic. Unbeatable performance from 24 gauge to 1/2 in. (12.7mm) thick in a single pass.
* Dual Gas Valves! Twin gas valves ready for spool gun welding.
* Spool Gun Ready! New factory fitted "run ready" with 10 pin receptacle, just "plug "n play".
* Timer Kit! Standard feature adding 2-step, 4-step trigger interlock, spot, dwell and stitch weld timer.
* Higher Output! The Fabricator 210 now punches out 250 Amp maximum output.
* Quick Change Polarity! Simple, quick change (no tools required) polarity and spool gun change-over from the front of the power source.
* New Gun! 15 ft. (4.5m) heavy duty Tweco WeldSkill MIG gun.
* Overload Protection! Shuts down the power source to protect the internal electrical components from over heating.
* New Cylinder Rack! Drop down cylinder rack allows for easy cylinder mounting.
* New Storage Box! Conveniently located in the wire compartment for all your drive rolls and gun consumable parts.
* New Dual Cylinder Option! Optional dual cylinder rack for mounting two cylinders.
* Heavy Duty Drive Rolls! Professional heavy duty 2-roll drive system featuring quick change reversible drive rolls (no tools required) and easy-to-set single scaled wire tension knob for smooth repeatable performance.
* Improved! Wire compartment design allows easy installation of the wire spool.
* .035/.045" reversible drive roll
* Factory fitted gear/cylinder rack
* 15 foot 250 Amp Tweco Weldskill MIG gun
* Amperage range: 20-250 Amp
* Max. open circuit voltage: 42V DC
* Wire Feed Speed: 80-800 inches per minute (2-20 m/min.)
* Rated Output: 210 Amp at 25.3V, 40% duty cycle, 176 AMP at 23.6V, 60% duty cycle
