Phd pneumatic air rotary actuator, 180 deg, 200 in-lb

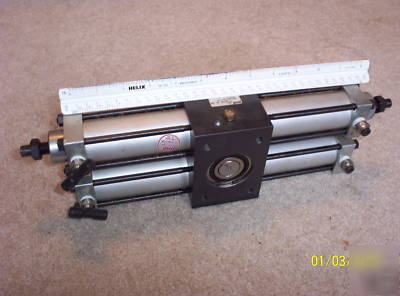

This listing is for a PHD pneumatic (air) rotary actuator.
From PHD website that part number corresponds to the follow pneumatic actuator:
Single shaft, imperial measurements, Pneumatic, 1 3/8" Bore Double Rack, 180 degree powered rotation in one direction 140 degree powered rotation in other, angle adjustment both ends, magnetic piston for solid state switch, and ports in position 4.
Series 4000 pneumatic rotary actuator.
Theoretical torque output: 2.22 in-lb per psi; 199.8 in-lb with 90 psi shop air.
Allowable Operating Pressure: 20 to 150 psi.
The stops can easily be removed so the actuator can be powered 180 degrees in both directions.
15.75"L x 4.25"H x 3"Deep (not including 0.880"OD x 1.8125" L shaft)
The original listing was for two actuator, one has been sold. This listing is for the remaining actuator.
