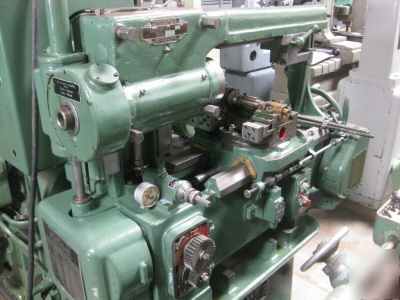

Barber coleman 6-10 gear hobber shaper. must see
Barber Coleman 6-10 Gear Hobber
In fantastic condition both working & cosmetically. This is a newer model machine with the square overarm. Ways are in great shape and the machine runs smooth.
Max. DP in Steel 16 DP- 2" Dia
Max Work O.D. 6"
Max Face width 7"
Max Hob Slide travel 11-9/16
Distance, centerline of work spindle to overarm 3"
Max distance centerline of work spindle to centerline od Hob Spindle 3-7/8"
Hob spindle diameter 3/4"
Max Hob diameter 2-1/16"
Range of spindle speeds (8) 133-533 rpm
Work spindle bore diameter 29/32"
Feed per revolution .015"-.150"
Main drive motor 2HP
Floor space required 61x30x52"
Machine weight 3,500 lbs
