> 10" dia. grav-i-flow c-4-806 tumbling barrel
10" dia. grav-i-flow c-4-806 tumbling barrel

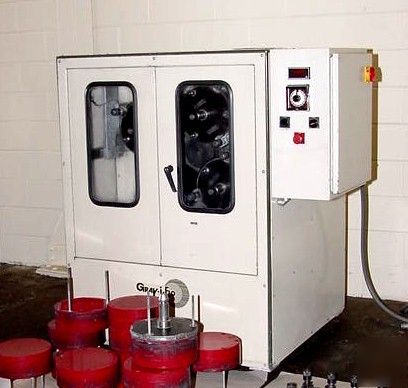

10" Dia. Grav-i-Flow C-4-806 TUMBLING BARREL
Grav-i-Flo / Grav Co. LLC of Sturgis, Michigan
Model C-4-806 S/N:125 MFG: 1996
Barrel Capacity:.......... 5.3
Load Capacity:............ 21.5
Force:.................... 2-22 g's
Space Required:........... 52 x 40 x 54
Here is some information from Grav-i-Flo:
The Grav-i-Flo C-4-806 Gyra Finish Machine consists
of a rotating turret on which four hexagonal,
polyurethane barrels are mounted. As the turret
rotates, the barrels turn in the opposite direction.
This unique motion develops strong centrifugal force
in each barrel, resulting in an extremely high rate
of work, due to the "weight increase" of the tumbling
The machine is of heavy construction to withstand the
high "g" forces generated. Entire barrels are molded of
polyurethane and are inserted into aluminum supporting
cradles equipped with quick acting locks. For maximum
utilization of production time the operator may unload
and reload an extra set of four barrels while the
The Grav-i-Flor C-4-806 Gyra Finish Machine can be
used for wet or dry processing with a variety of medias
and compounds. Results range from the finest of
finishes on jewelry and high quality machined parts to
very aggressive deburring. The "g" forces produced in
this machine result in less part on part impingement
than often encountered in tumbling barrels or vibratory
Parts can be finished or deburred more than twenty
times faster than a conventional tumbling barrel and
about eight times faster than vibratory finishing
Applications vary from small and miniature pieces to
larger parts, that would otherwise require extensive
hand finishing. Very small abrasive medias that do not
work well in tumbling barrels or vibratory machines,
because of the very slow cut or finish, are very well
