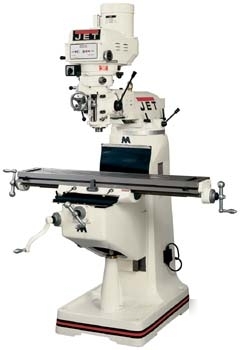

New jet vertical millling machine 690401
JET JTM-4VS, 1-Phase Vertical Milling Machine With ANILAM Wizard 411 DRO & X Axis TPFA
* Precision bored and honed milling head
* Large diameter quill is chromed
* High precision Class 7 spindle bearings
* Chrome plated motor shaft with lower bearing support
* Spindle head is internally cooled
* Satin chrome finished dials
* Heavy-duty splined motor drive
* One-piece quill pinion and shaft
* Three-stage power down feed with automatic stop
* Locks on all movable surfaces
* Precision hardened and ground ways and table
* Adjustable gibs throughout
* Internal coolant tank built into casting base for use with coolant system (coolant pump not included)
* Tolerance table sheet included
Motor 3 HP, 3 Ph 230/460V; Pre-wired 230V Table Size 9" x 49" Spindle Taper R-8 Number Of Spindle Speeds Variable Range Of Spindle Speeds 60 - 4,200 RPM Down Feeds Of Spindle .0015 - .003 - .006 (per/rev./in.) Spindle Travel 5" Head Movement 90 Right & Left; 45 Forward & Back Distance Spindle To Table 17-1/2" Distance Spindle To Column 4-1/2" (Minimum) Distance Spindle To Column 19" (Maximum) Longitudinal Table Travel (X-axis) 34" Cross Travel (Y-axis) 12" Collet Capacity 1/8" - 7/8" T-Slots 3 T-Slots Size 5/8" T-Slots Centers 2-1/2" Maximum Weight Of Work Piece 660 lbs. Travel Of Knee (Z-axis) 16" Travel Of Ram 14-1/2" Overall Dimensions 65-1/2" x 63" x 85" (L x W x H) Net Weight 2,420 lbs. Quill Diameter 3-3/8"
* JTM-4VS 1-Phase Vertical Milling Machine w/ ANILAM Wizard 411 DRO and X Axis TPFA - 690401
* One-Shot Lubrication System
